MINERAL PLASTER TECHNOLOGY
Technical
- This page contains:
- Technical Manuals;
- Detail drawings for each system;
- Technical Data Sheets;
- Safety Data Sheets; and
- Video clips showing how some parts of the systems work
This information is all provided under a limited licence to use it for the purpose of specifying the use of Petros Holdings Ltd’s Mineral Plaster Technology branded systems and products in construction projects. Aside from that use, this material is all protected by Copyright. Detail drawings are provided to assist architects and designers, however Petros Holdings Ltd accepts no responsibility for any plans submitted to Councils. It is for the Architect and/or designer to assess the suitability of any detail drawing for their purposes
Technical Manuals
Detail Drawings
General
-

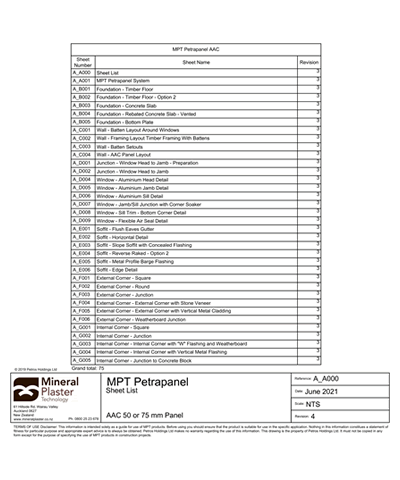

Sheet list 1
-

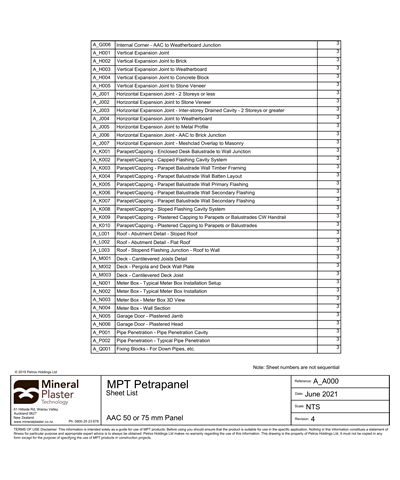

Sheet list 2
-

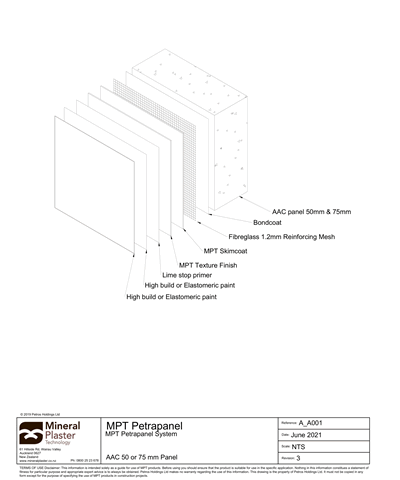

MPT Petrapanel System
Foundation
-

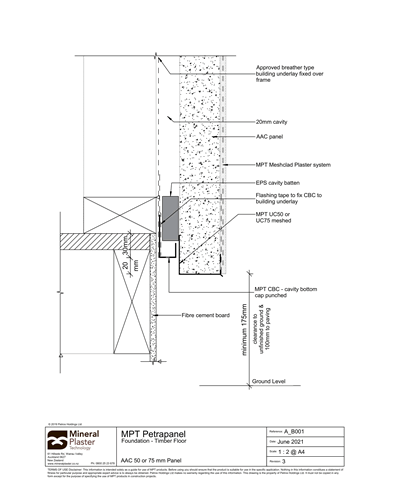

Timber Floor
-

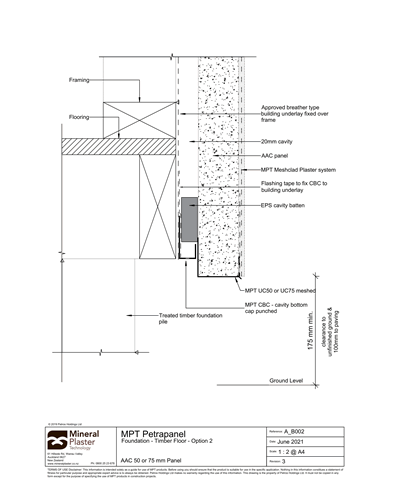

Timber Floor - Option 2
-

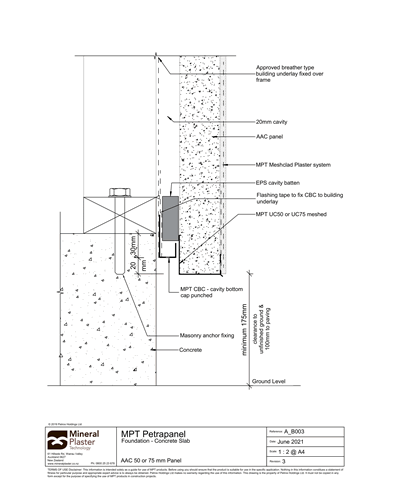

Concrete Slab
-

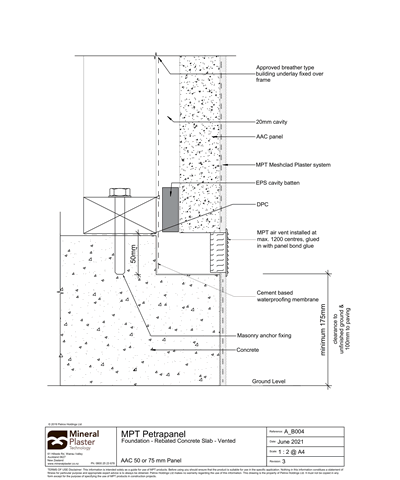

Rebated Concrete Slab - Vented
-

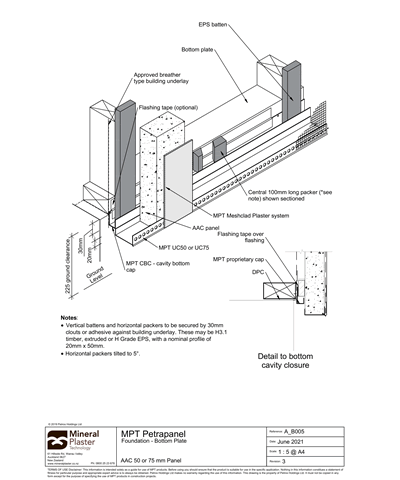

Bottom Plate
Wall
-
Batten Layout Around Windows
-
Framing Layout Timber Framing With Battens
-

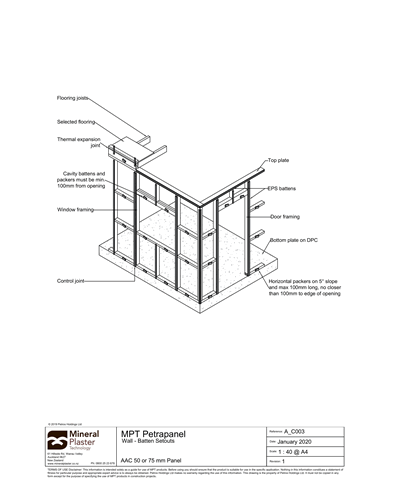

Batten Setouts
-

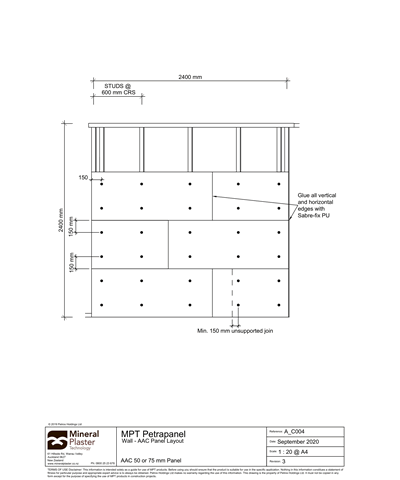

AAC Panel Layout
Junction
-

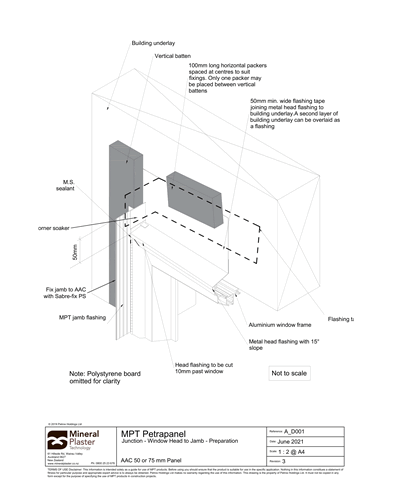

Window Head to Jamb - Preparation
-

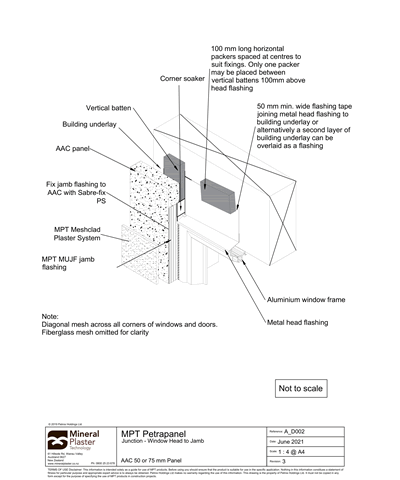

Window Head to Jamb
Window
-

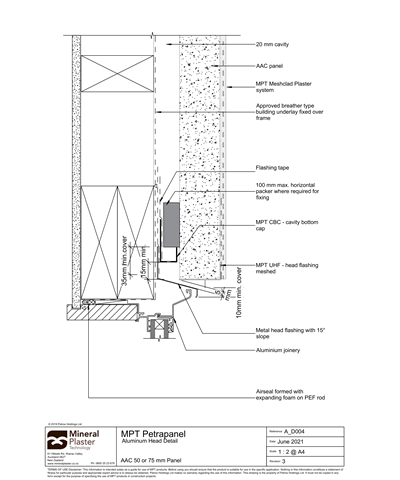

Aluminium Head Detail
-

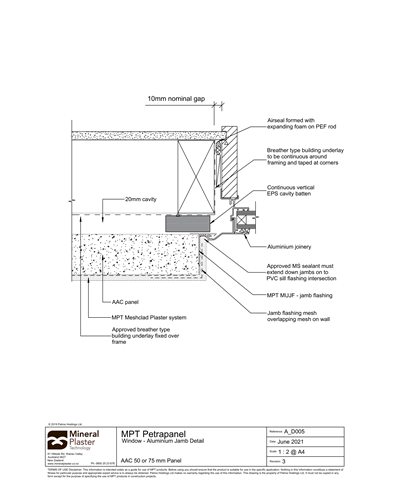

Aluminium Jamb Detail
-

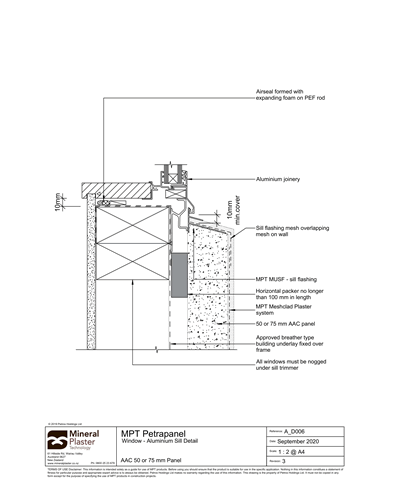

Aluminium Sill Detail
-
Jamb/Sill Junction with Corner Soaker
-
Sill Trim - Bottom Corner Detail
-

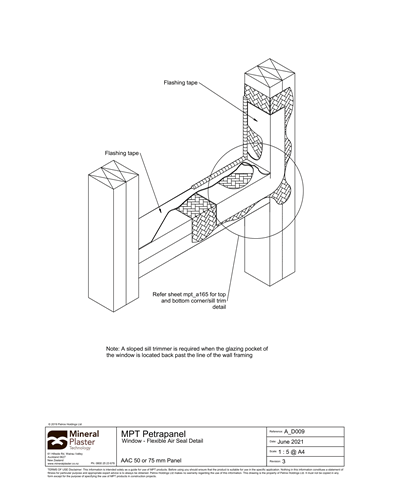

Flexible Air Seal Detail

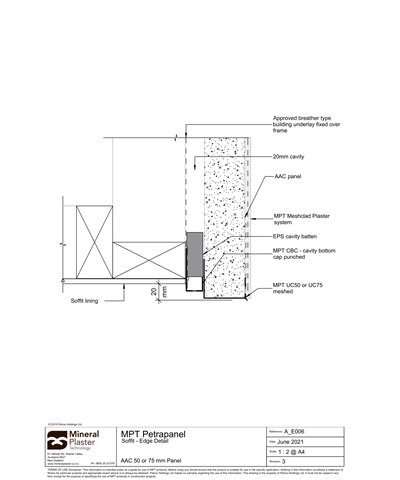

Soffit
-

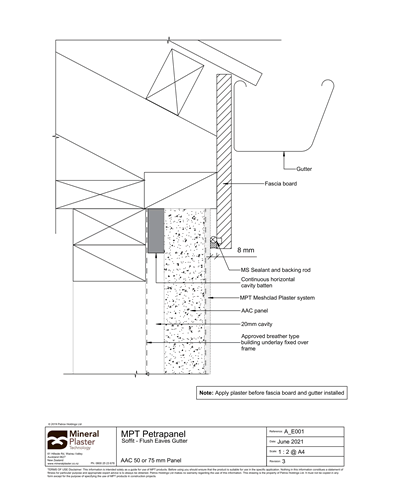

Flush Eaves Gutter
-
Horizontal Detail
-

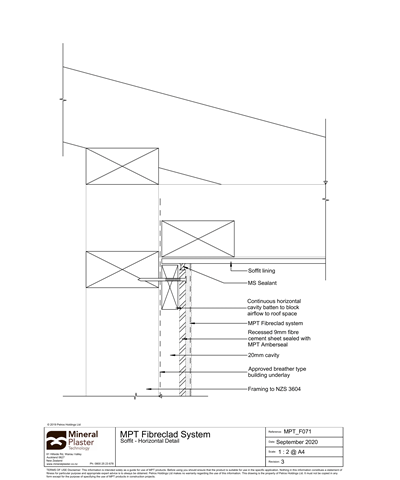

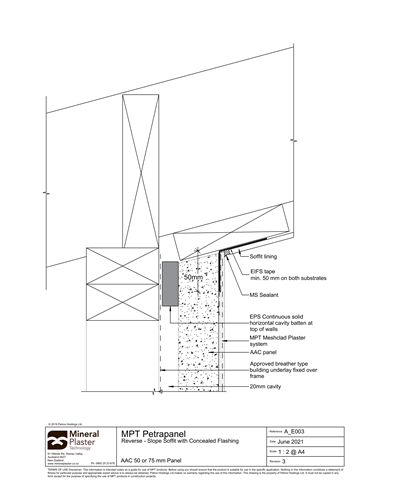

Slope Soffit with Concealed Flashing
-

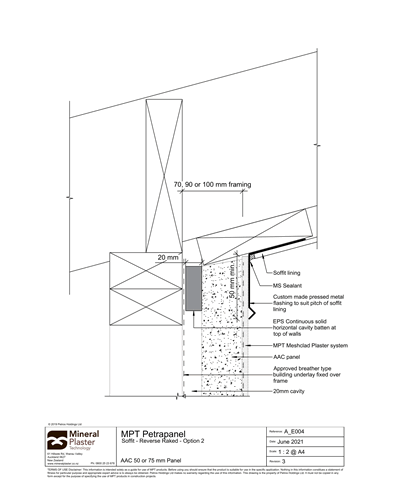

Reverse Raked - Option 2
-

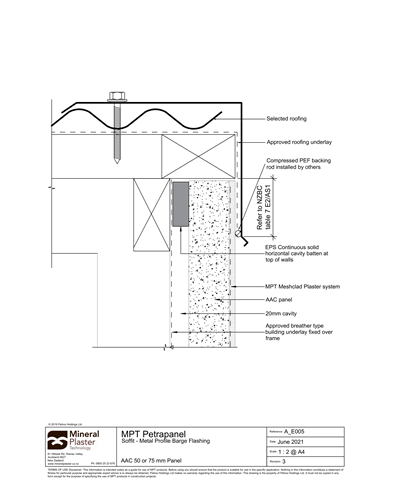

Metal Profile Barge Flashing
-
Edge Detail

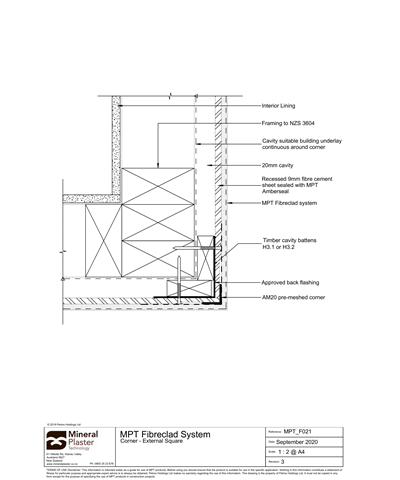

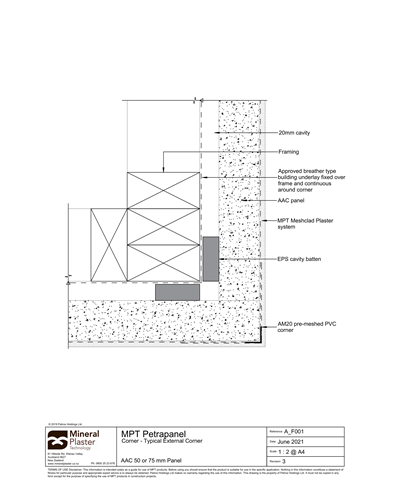

External Corner
-
Square
-

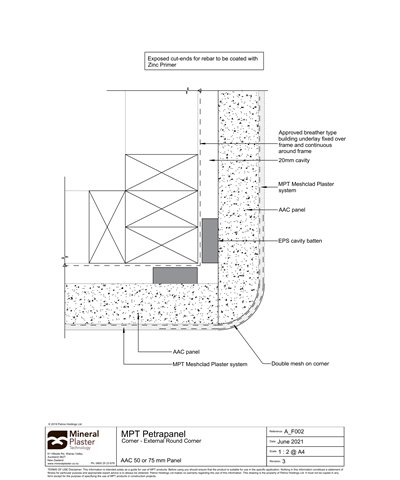

Round
-

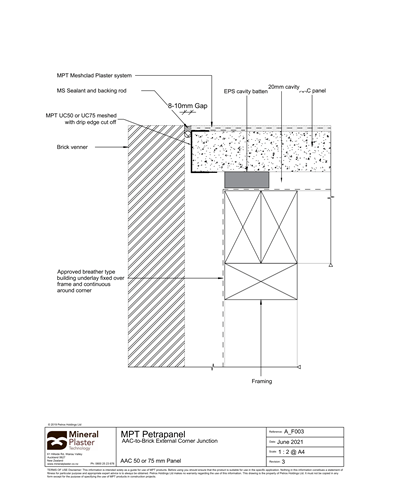

Junction
-

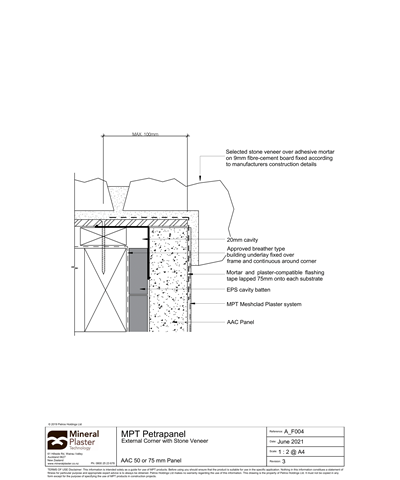

External Corner with Stone Veneer
-

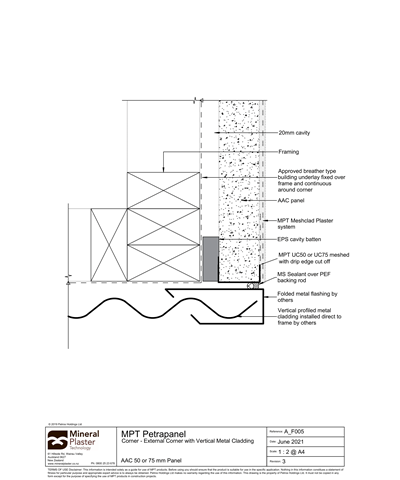

External Corner with Vertical Metal Cladding
-

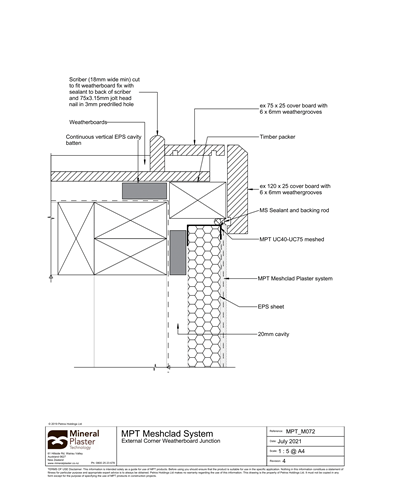

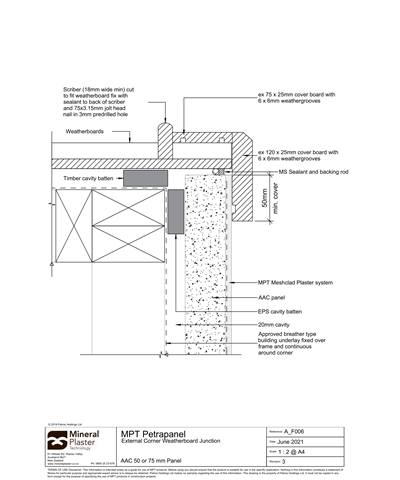

Weatherboard Junction
Internal Corner
-
Square
-
Round
-
Junction
-
External Corner with Stone Veneer
-
External Corner with Vertical Metal Cladding
-
Weatherboard Junction
Vertical Expansion
-
Joint
-

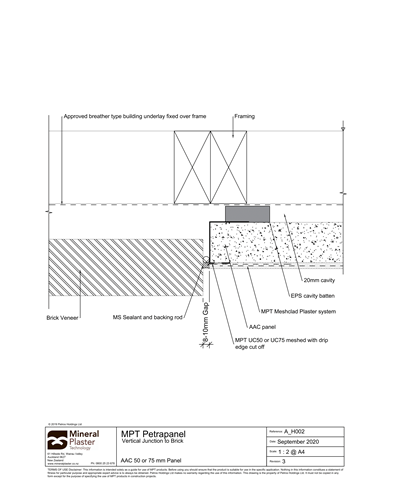

Joint to Brick
-
Joint to Weatherboard
-

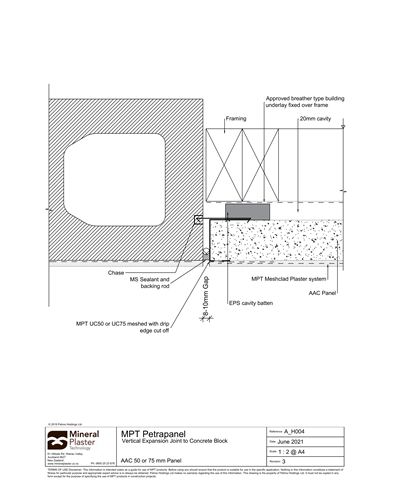

Joint to Concrete Block
-
Joint to Stone Veneer
Horizontal Expansion
-

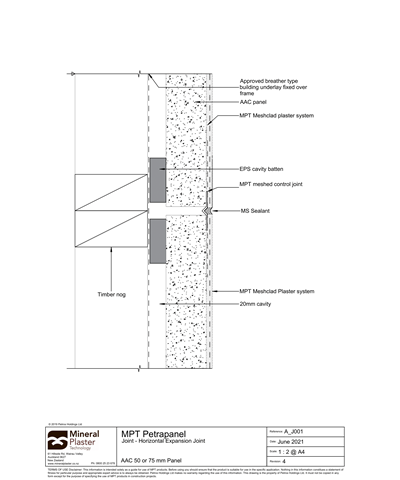

Joint - 2 Storeys or less
-

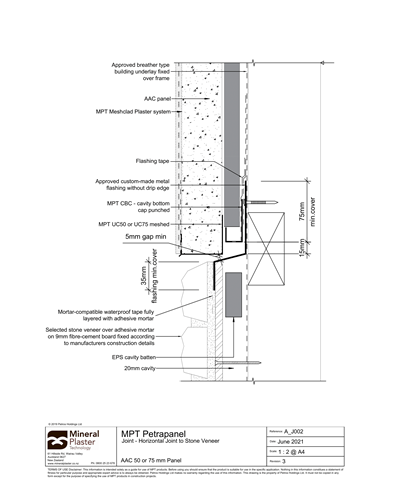

Joint to Stone Veneer
-

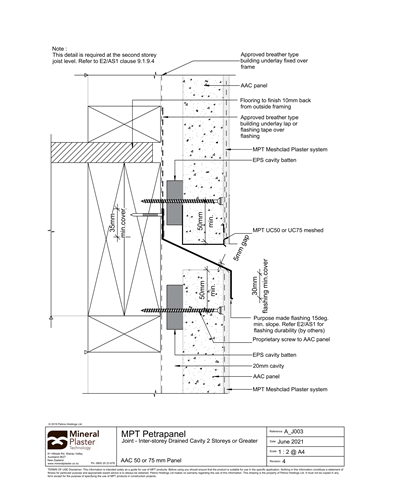

Joint - Inter-storey Drained Cavity - 2 Storeys or greater
-

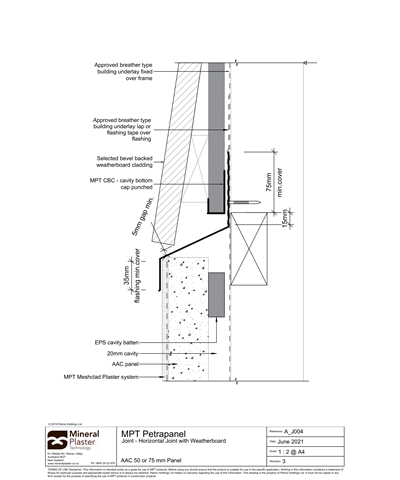

Joint to Weatherboard
-

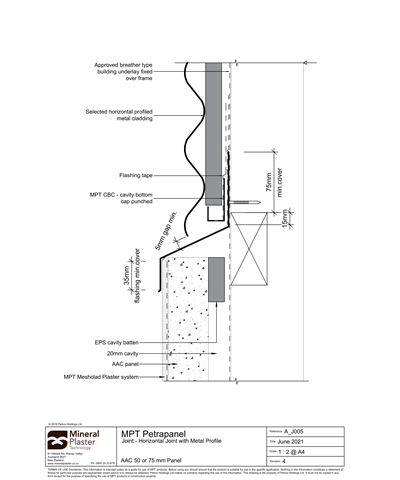

Joint to Metal Profile
-
Joint - AAC to Brick Junction
-
Joint - Meshclad Overlap to Masonry
Parapet / Capping
-

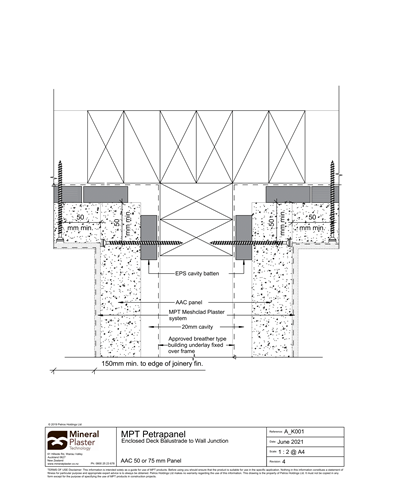

Enclosed Desk Balustrade to Wall Junction
-

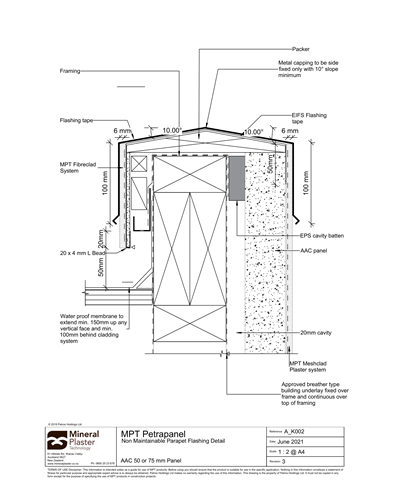

Capped Flashing Cavity System
-

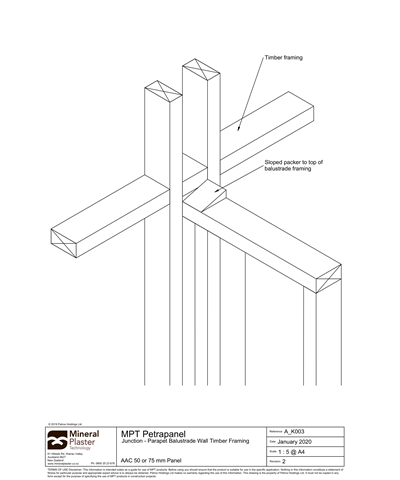

Parapet Balustrade Wall Timber Framing
-

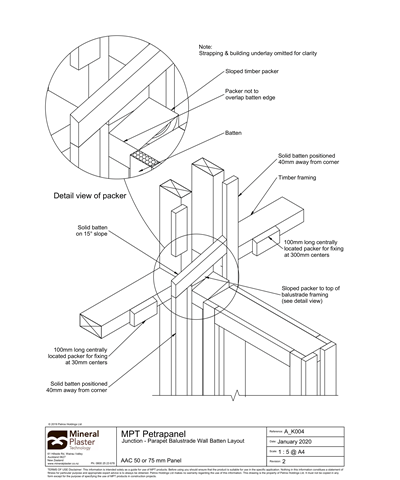

Parapet Balustrade Wall Batten Layout
-

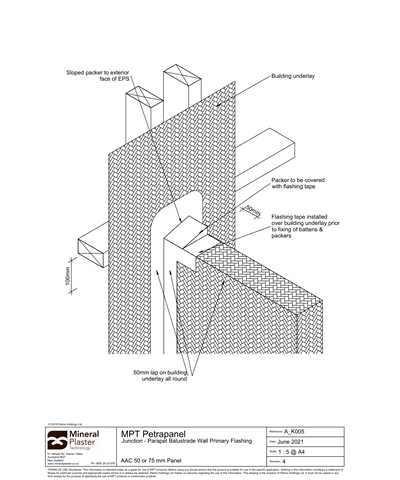

Parapet Balustrade Wall Primary Flashing
-

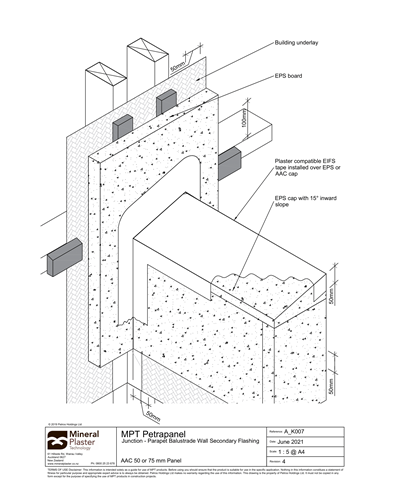

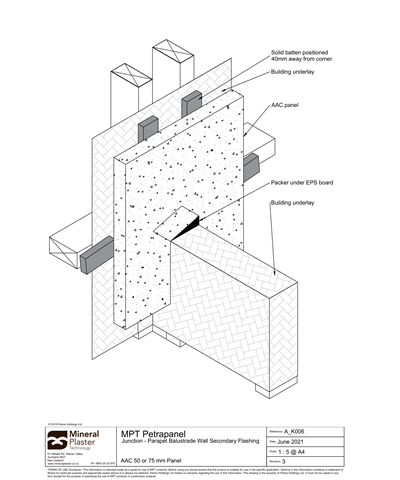

Parapet Balustrade Wall Secondary Flashing
-
Parapet Balustrade Wall Secondary Flashing
-
Sloped Flashing Cavity System
-

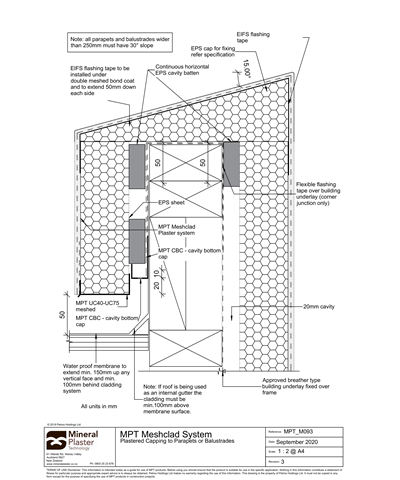

Plastered Capping to Parapets or Balustrades
Roof
-

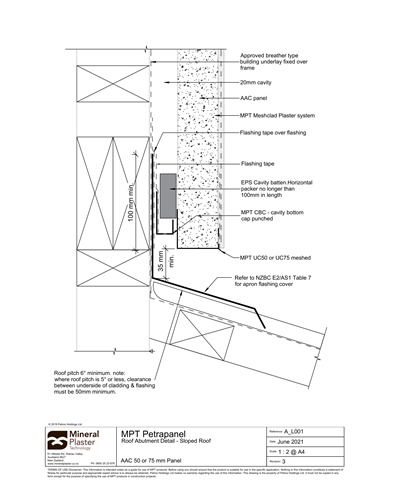

Abutment Detail - Sloped Roof
-

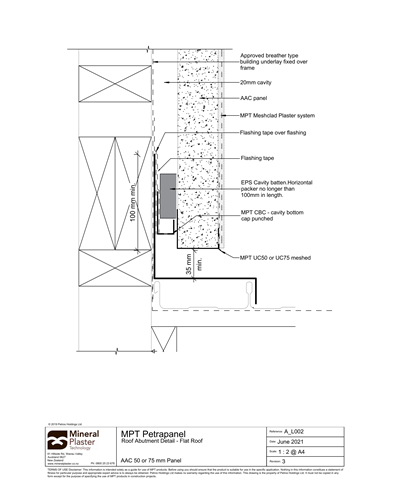

Abutment Detail - Flat Roof
-

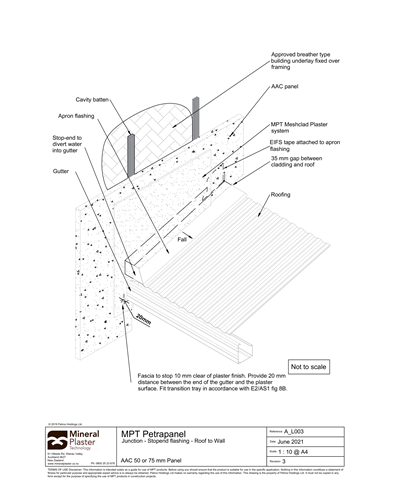

Stopend Flashing Junction - Roof to Wall
Deck
-

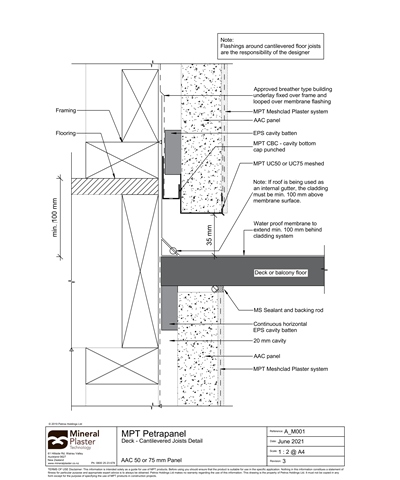

Cantilevered Joists Detail
-

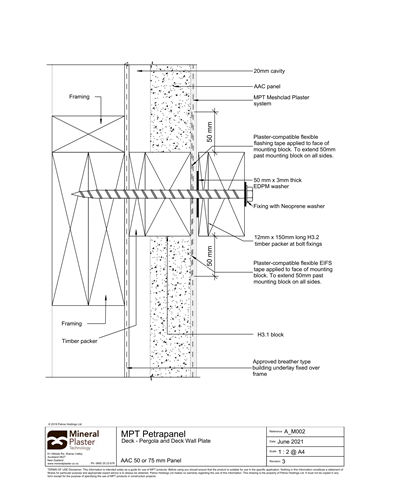

Pergola and Deck Wall Plate
-

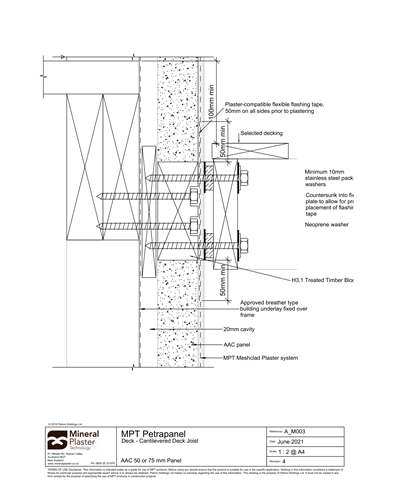

Cantilevered Deck Joist
Meter Box
-

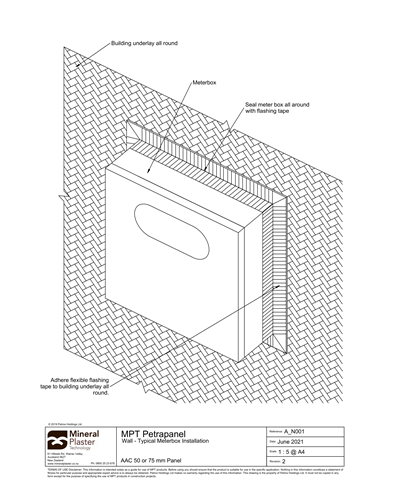

Typical Meter Box Installation Setup
-

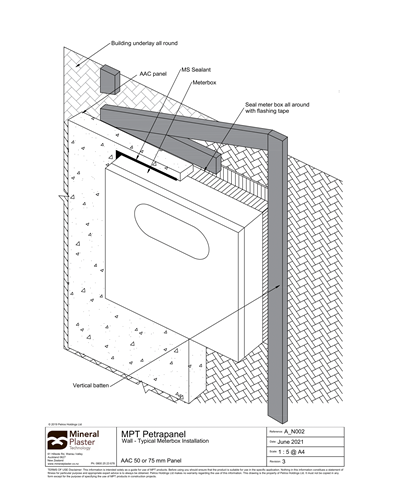

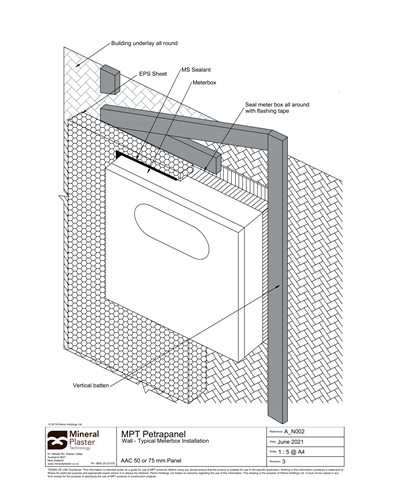

Typical Meter Box Installation
Garage Door
-

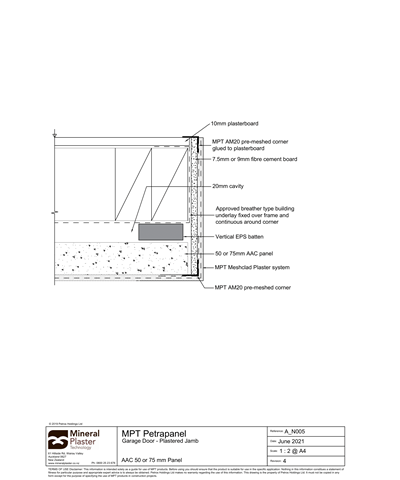

Plastered Jamb
-

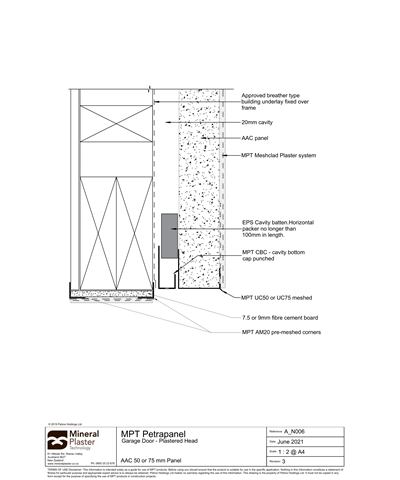

Plastered Head
Pipe Penetration
-
Pipe Penetration Cavity
-
Typical Pipe Penetration
Fixing Blocks
-
For Down Pipes, etc.
General
-
Sheet List
-

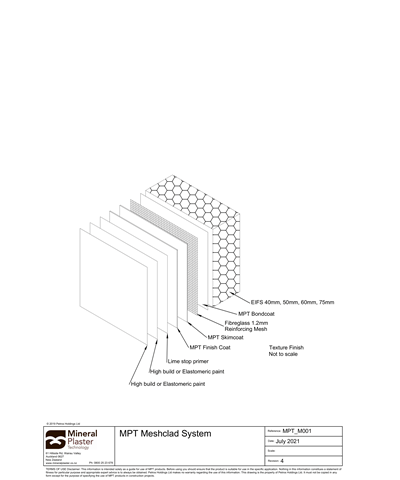

MPT Meshclad System
-
Enclosed Deck Balustrade to Wall Junction
-

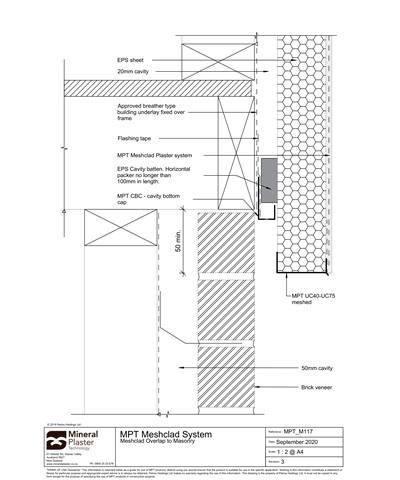

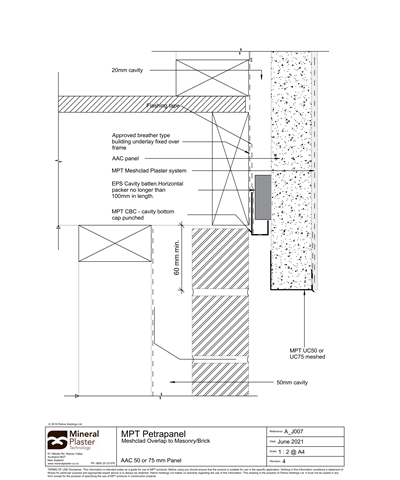

Meshclad Overlap to Masonry
Corner
-

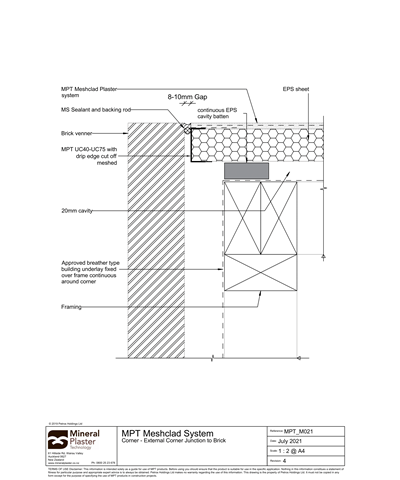

External Corner Junction to Brick
-

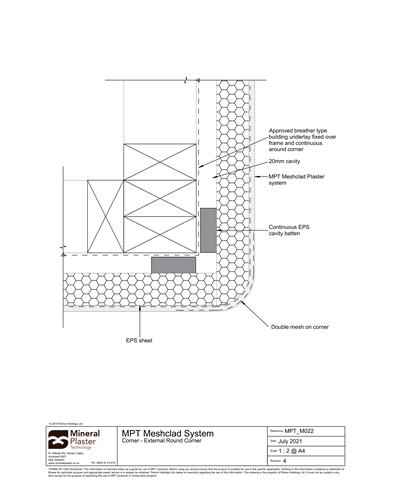

External Round Corner
-

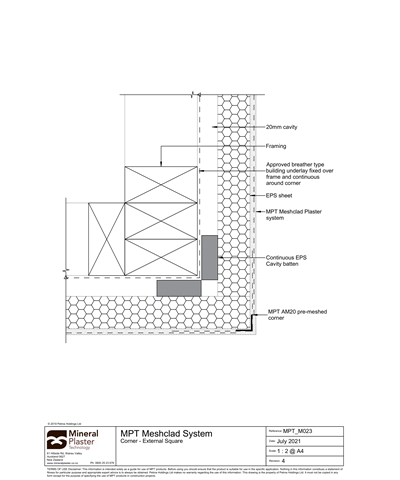

External Square
-

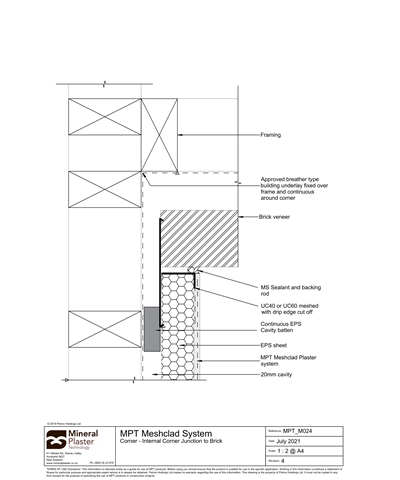

Internal Corner Junction to Brick
-

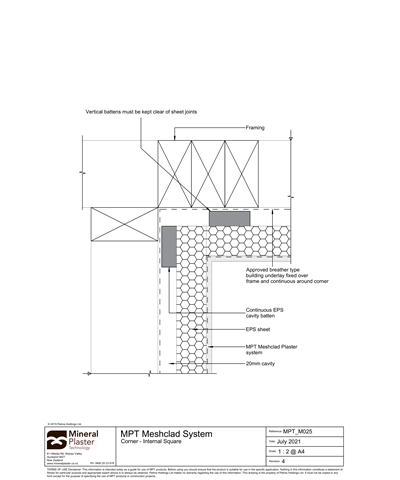

Internal Square
Foundation
-

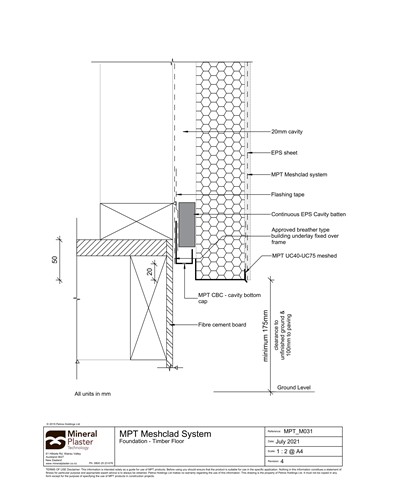

Timber Floor
-

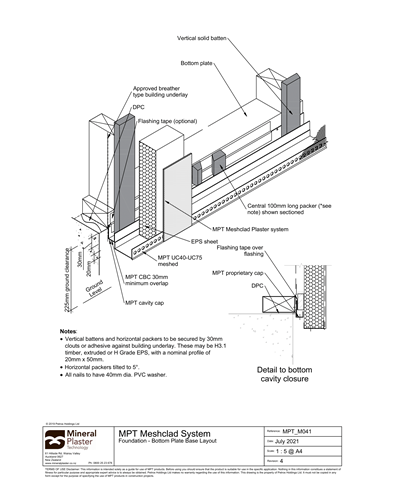

Bottom Plate Base Layout
Joint
-

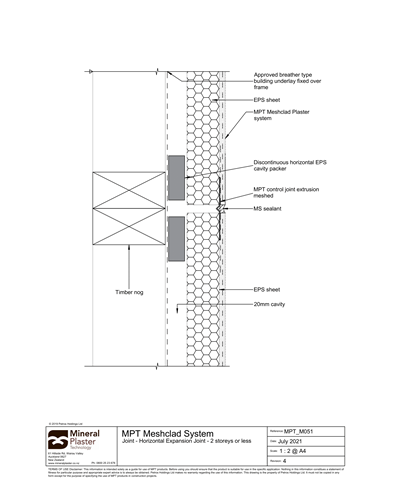

Horizontal Expansion Joint - 2 storeys or less
-

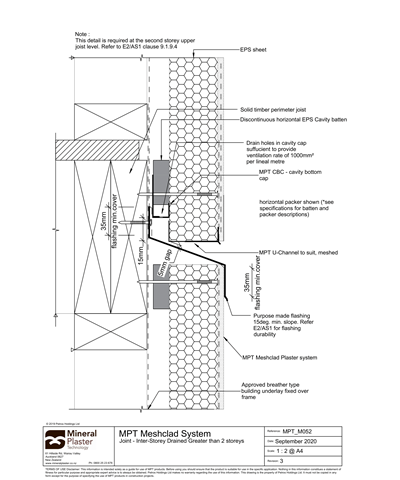

Inter-Storey Drained Greater than 2 storeys
-

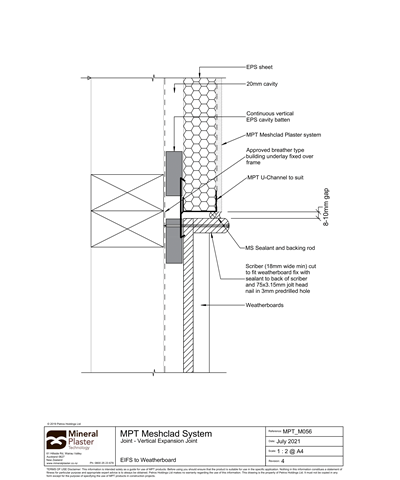

Vertical Expansion Joint
-
Vertical Expansion Joint
Junction
-

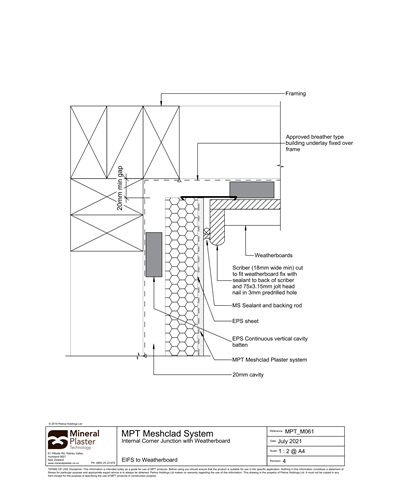

Internal Corner Junction with Weatherboard
-

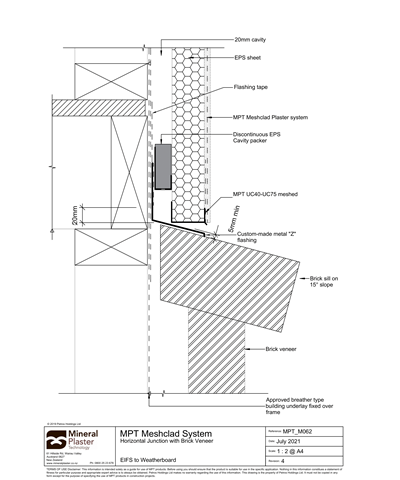

Horizontal Junction with Brick Veneer
-

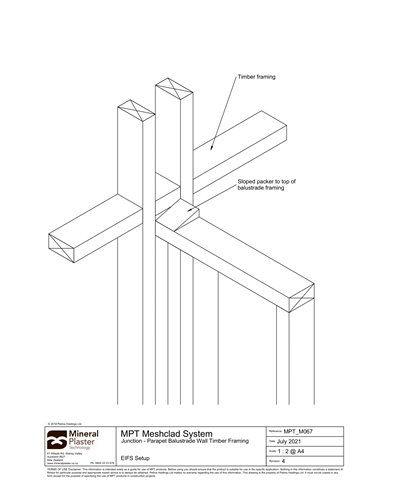

Parapet Balustrade Wall Timber Framing
-

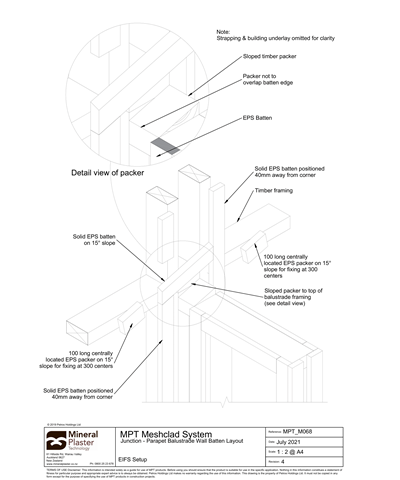

Parapet Balustrade Wall Batten Layout
-
Parapet Balustrade Wall Primary Flashing
-

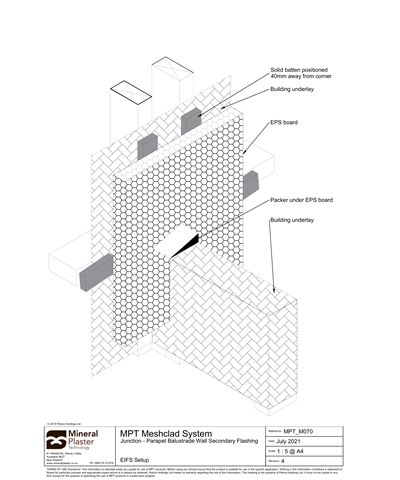

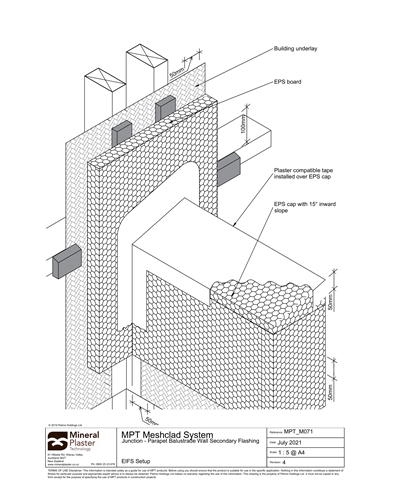

Parapet Balustrade Wall Secondary Flashing
-
Parapet Balustrade Wall Secondary Flashing
-

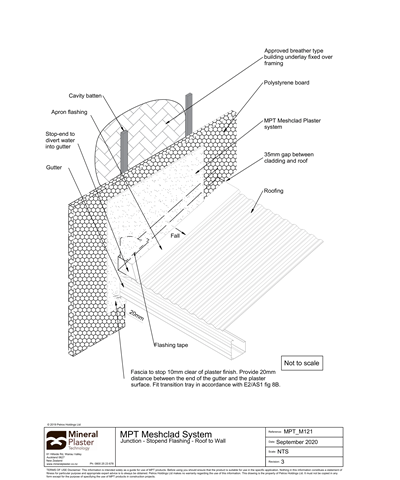

Stopend flashing - Roof to Wall
-

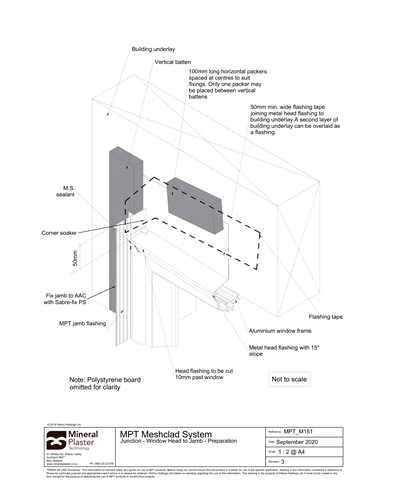

Window Head to Jamb - Preparation
-

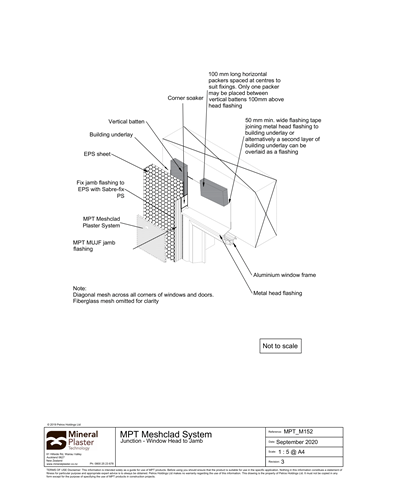

Window Head to Jamb
External Corner
-
Weatherboard Junction
Parapet & Balustrades
-

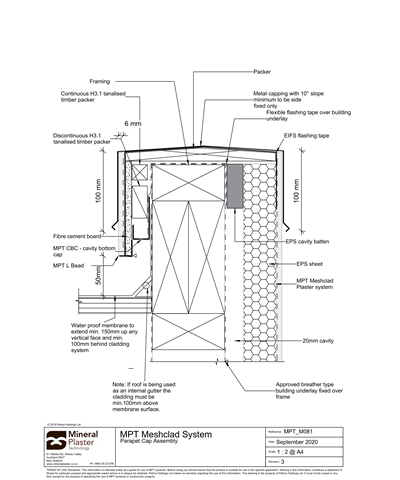

Flat
-

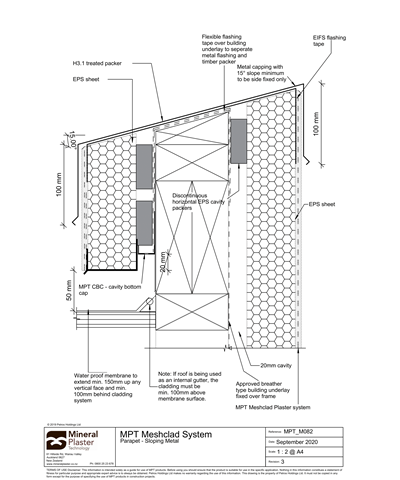

Sloping Metal
-
Plastered Capping to Parapets or Balustrades W/C Handrail
-
Plastered capping to parapets or balustrades
Roofs & Soffits
-
Wall Junction
-

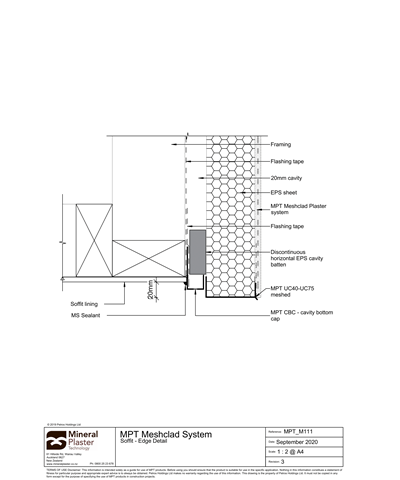

Edge Detail
-

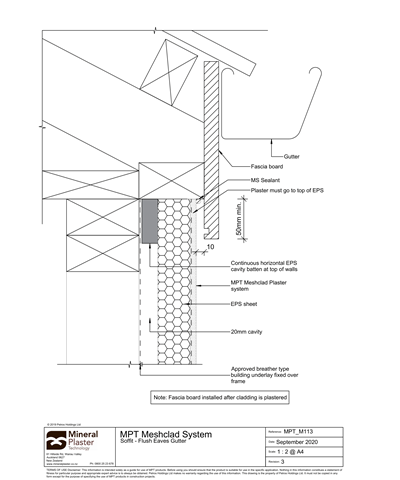

Flush Eaves Gutter
-

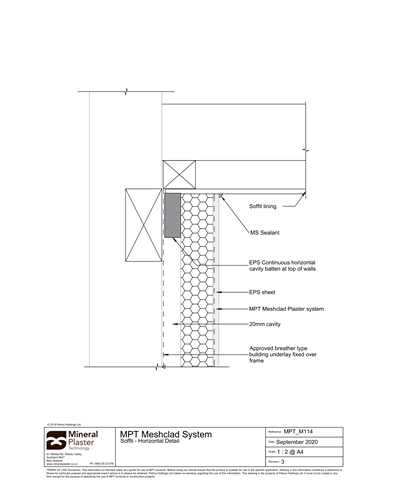

Horizontal Detail
-

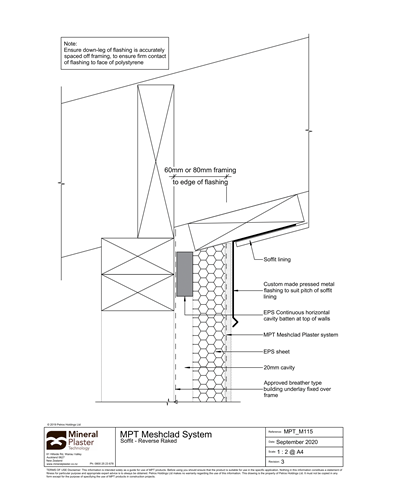

Reverse Sloped Soffit - Option 1
-

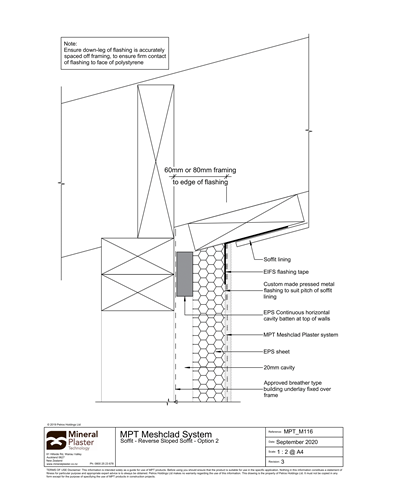

Reverse Sloped Soffit - Option 2
Walls
-

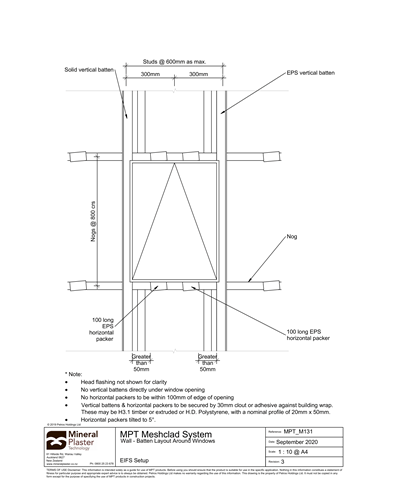

Batten Layout Around Windows
-

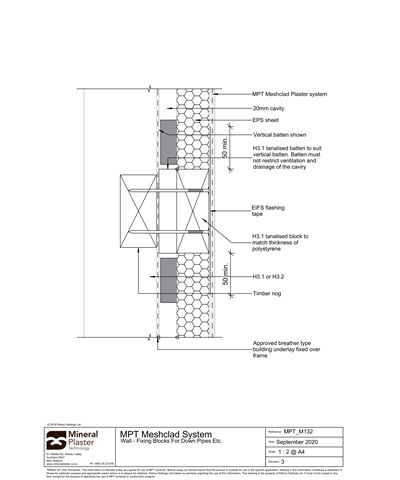

Fixing Blocks For Down Pipes Etc.
-
Framing Layout Timber Framing With Battens
-

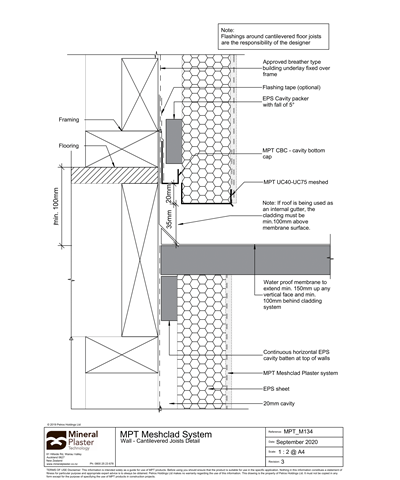

Cantilevered Joists Detail 40mm
-

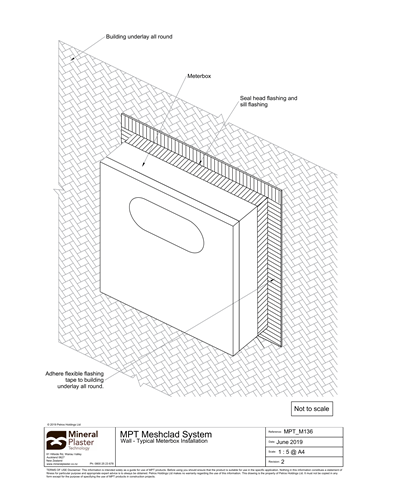

Typical Meterbox Installation
-
Typical Meterbox Installation
-

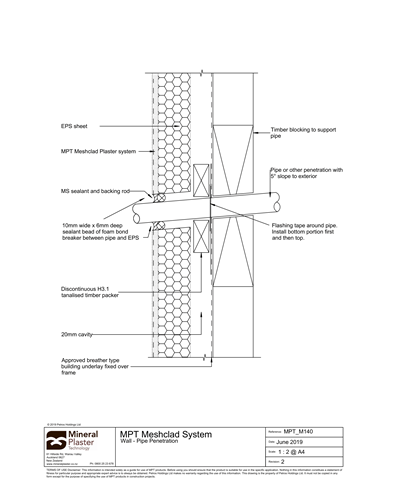

Pipe Penetration
-
Typical Pipe Penetration
-

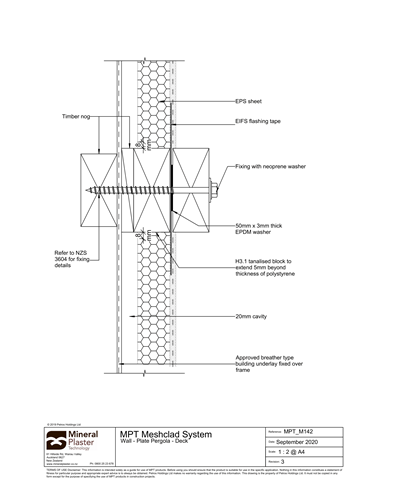

Plate Pergola - Deck
Windows
-

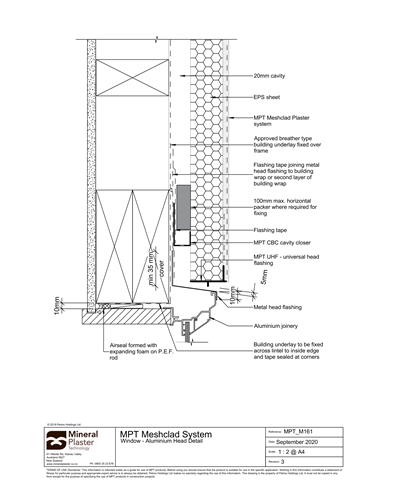

Aluminium Head Detail
-

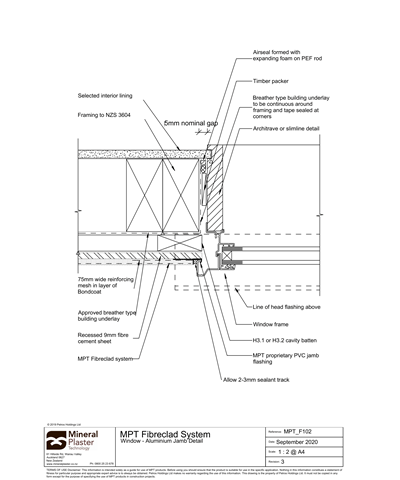

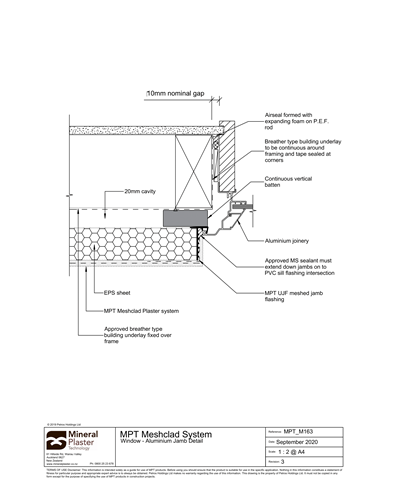

Aluminium Jamb Detail
-
Aluminium Sill Detail
-

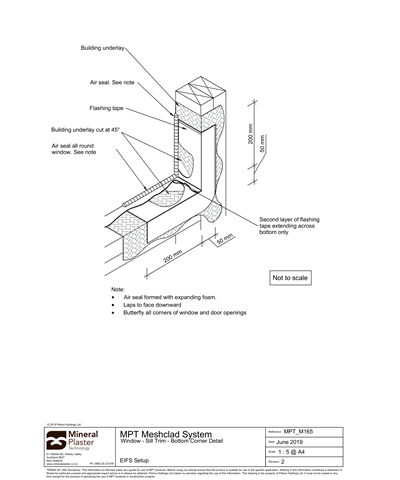

Sill Trim - Bottom Corner Detail
-
Jamb-Sill Junction with Corner Soaker
Garage Door
-

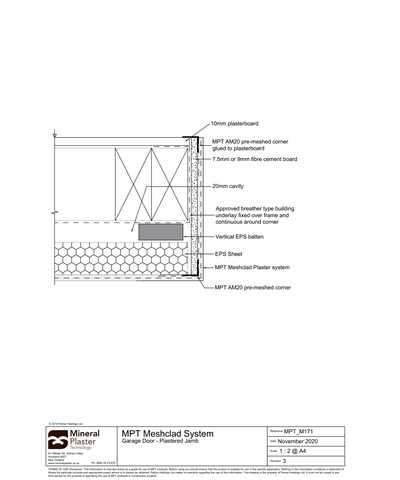

Plastered Jamb
-

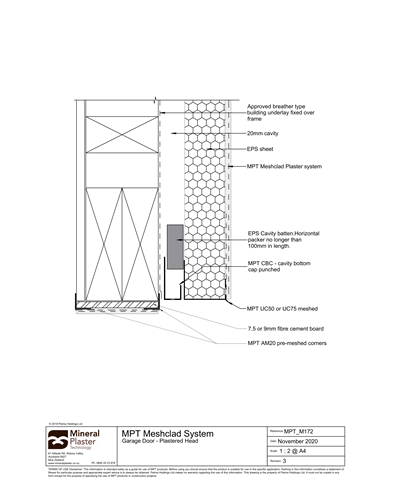

Plastered Head
General
-

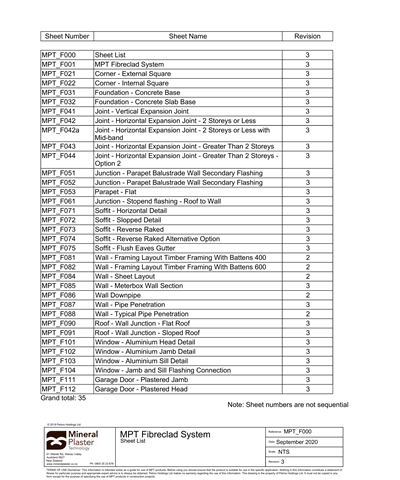

Sheet List
-

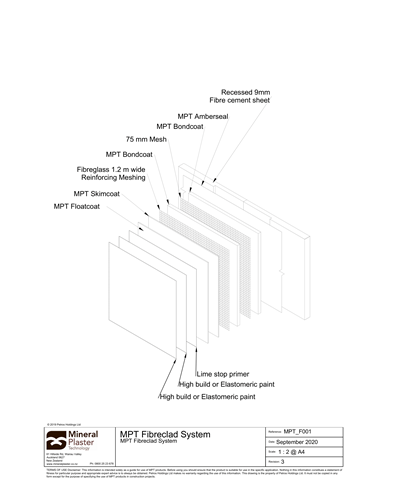

MPT Fibreclad System
Corner
-
External Square
-

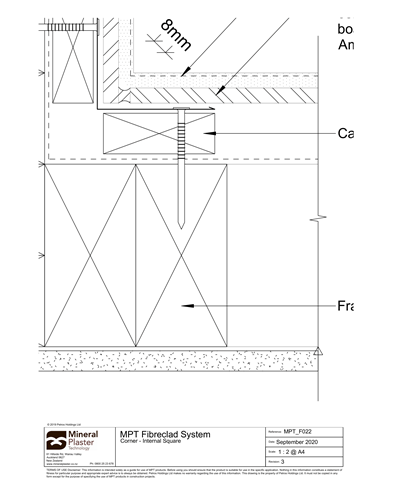

Internal Square
Foundation
-

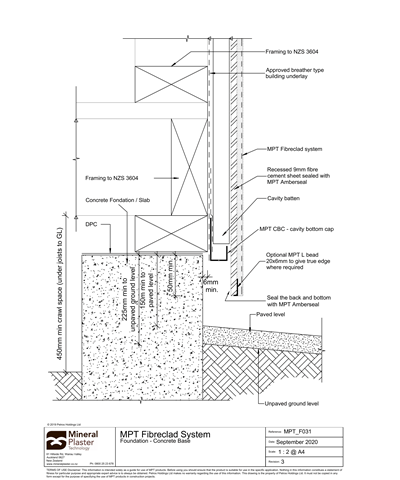

Concrete Base
-

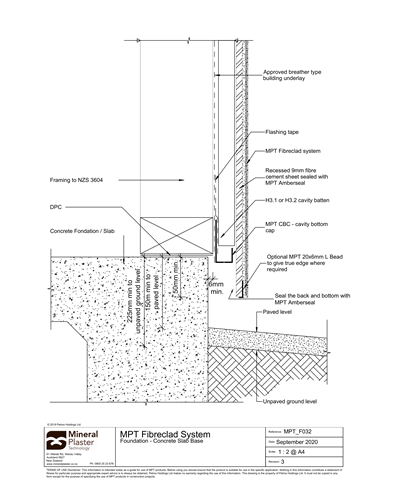

Concrete Slab Base
Joint
-

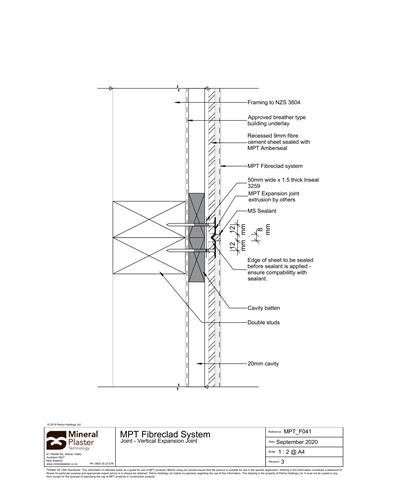

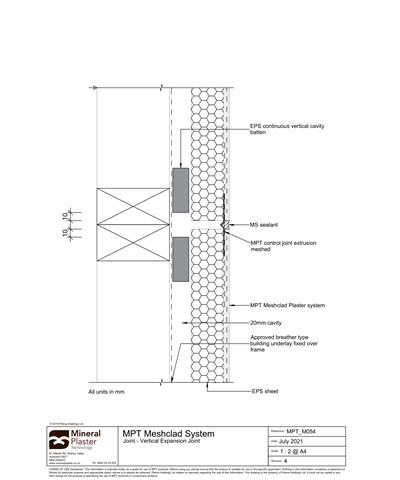

Vertical Expansion Joint
-

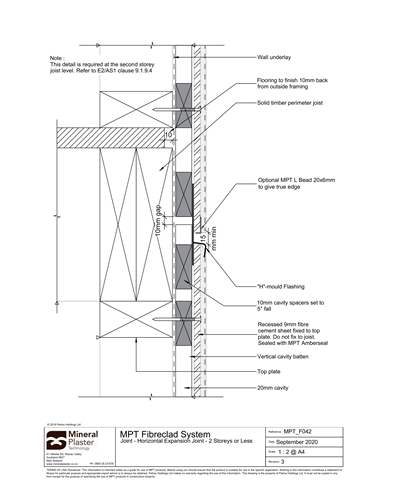

Horizontal Expansion Joint - 2 Storeys or Less
-

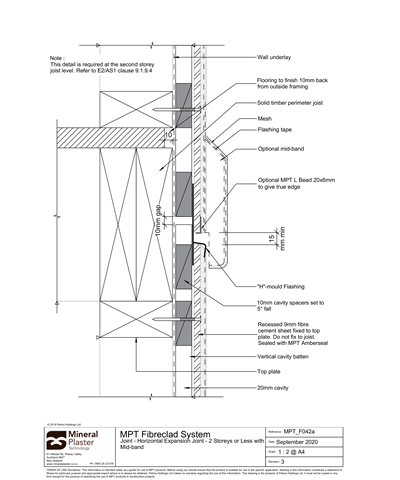

Horizontal Expansion Joint - 2 Storeys or Less with
Mid-band
-

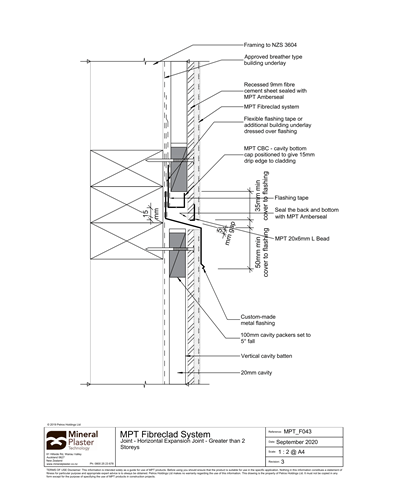

Horizontal Expansion Joint - Greater Than 2 Storeys
-

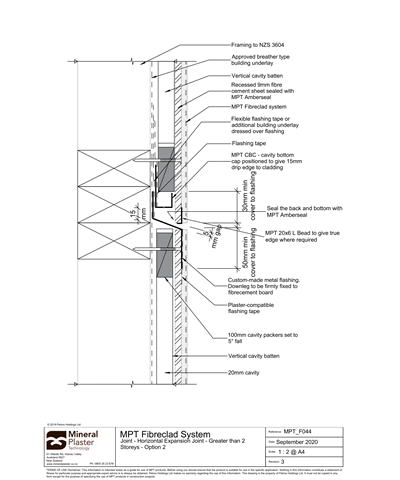

Horizontal Expansion Joint - Greater Than 2 Storeys -
Option 2
Parapet & Balustrades
-

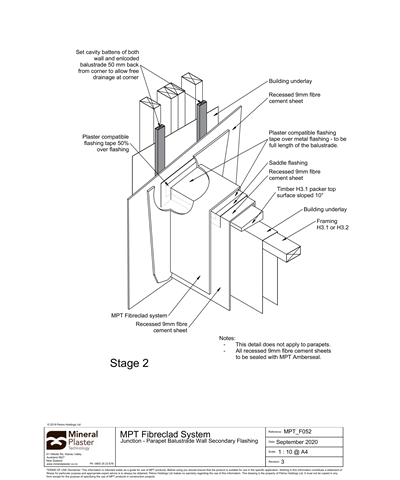

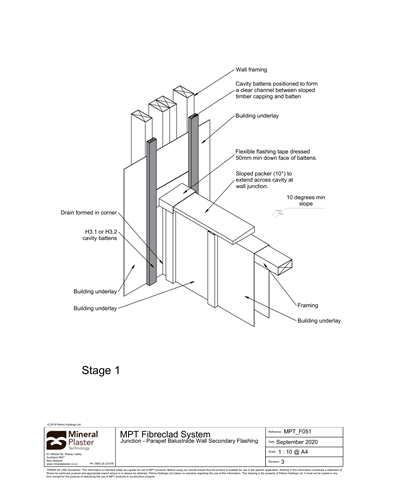

Parapet Balustrade Wall Secondary Flashing
-
Parapet Balustrade Wall Secondary Flashing
-

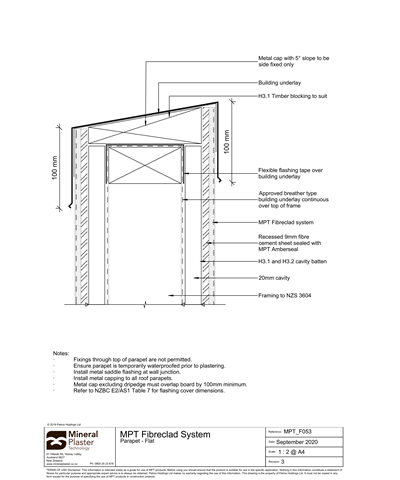

Flat
Junction
-

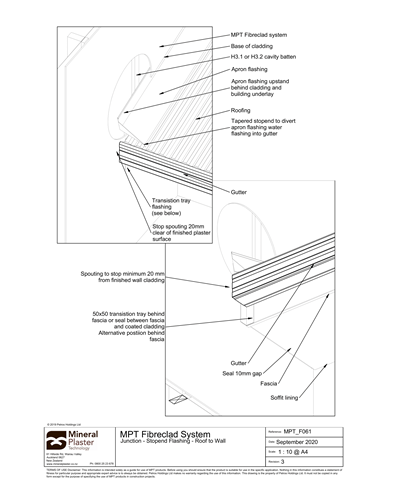

Stopend flashing - Roof to Wall
Roofs & Soffits
-

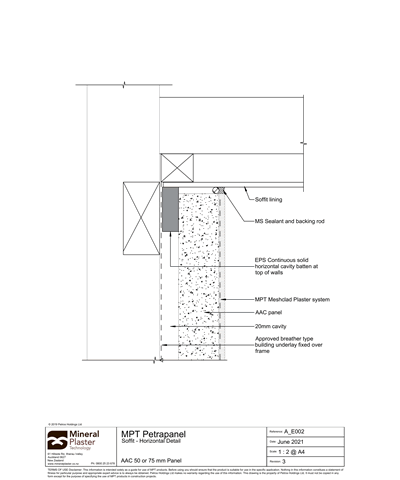

Horizontal Detail
-
Slopped Detail
-

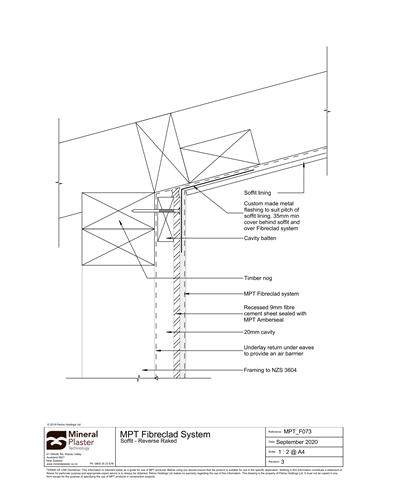

Reverse Raked
-

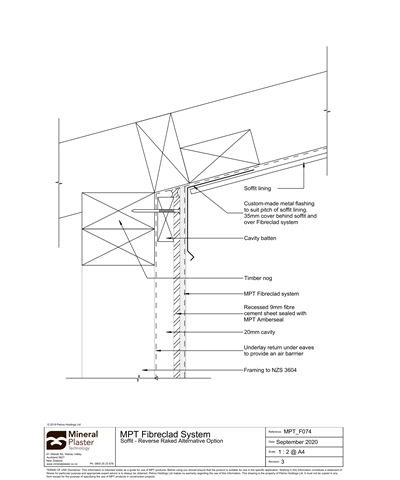

Reverse Raked Alternative Option
-

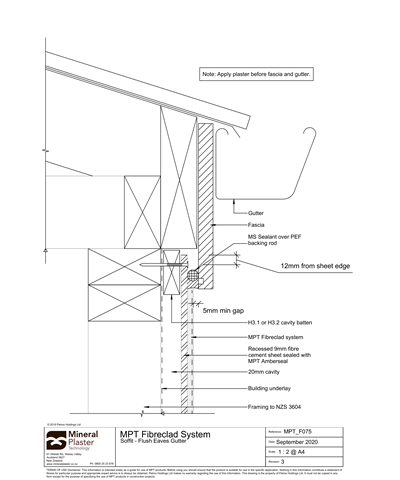

Flush Eaves Gutter
-

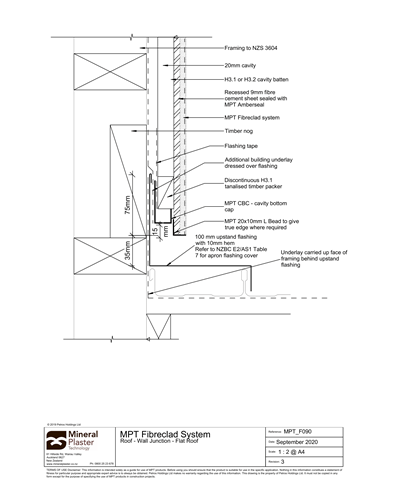

Wall Junction - Flat Roof
-

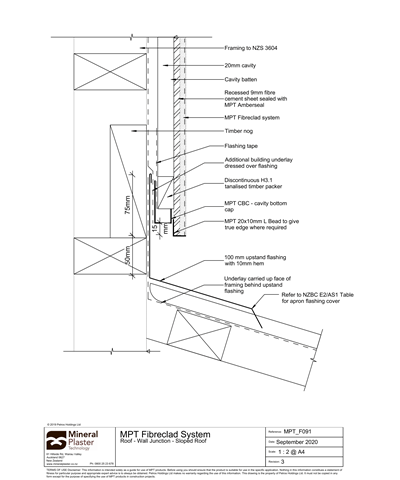

Wall Junction - Sloped Roof
Walls
-

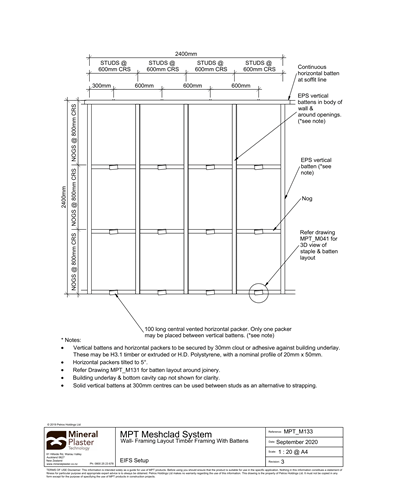

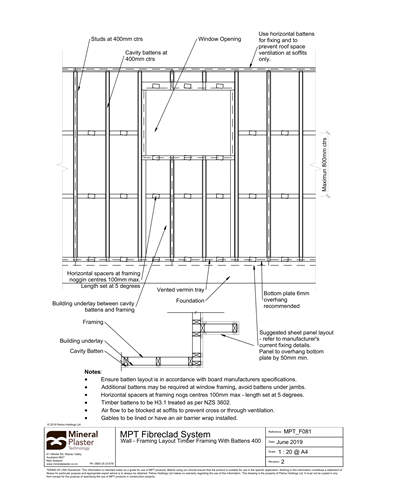

Framing Layout Timber Framing With Battens 400
-

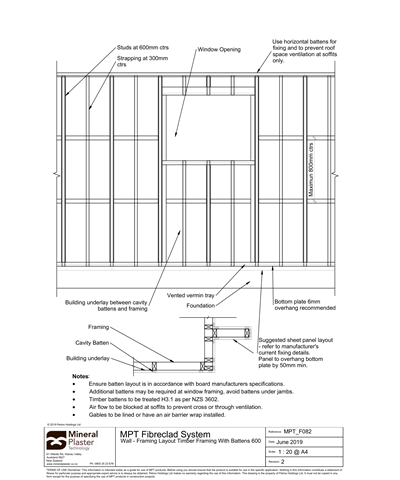

Framing Layout Timber Framing With Battens 600
-

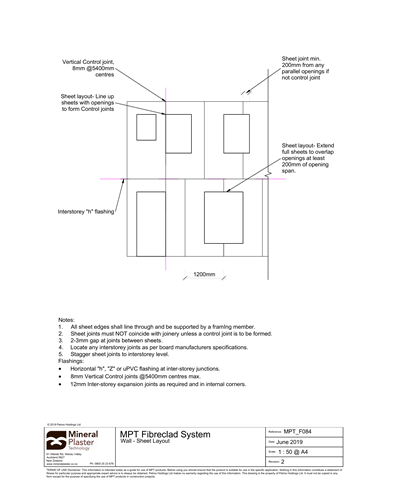

Sheet Layout
-

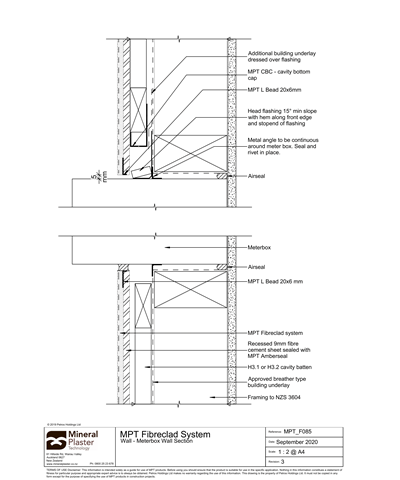

Meterbox Wall Section
-

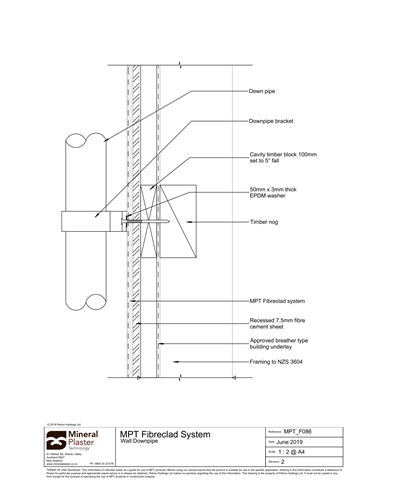

Wall Downpipe
-

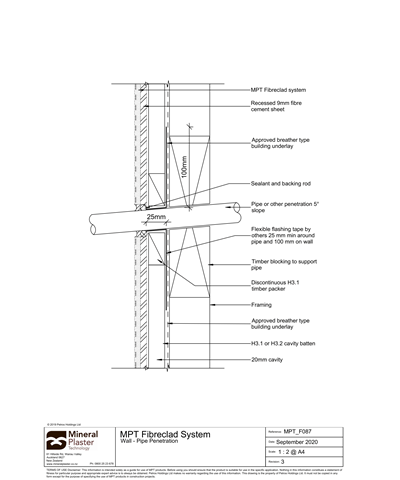

Pipe Penetration
-
Typical Pipe Penetration
Windows
-

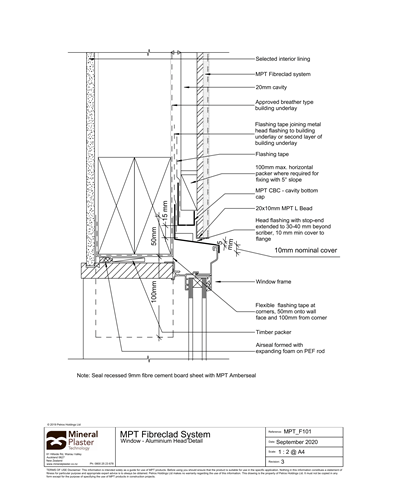

Aluminium Head Detail
-
Aluminium Jamb Detail
-

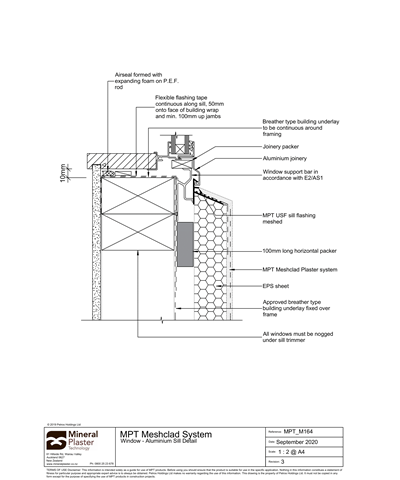

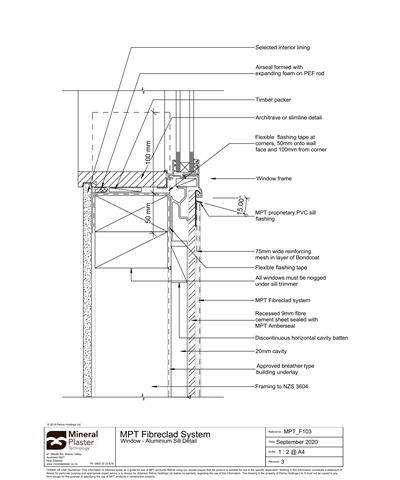

Aluminium Sill Detail
-

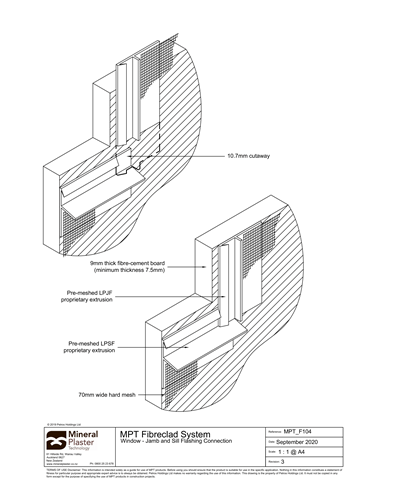

Jamb and Sill Flashing Connection
Garage Door
-

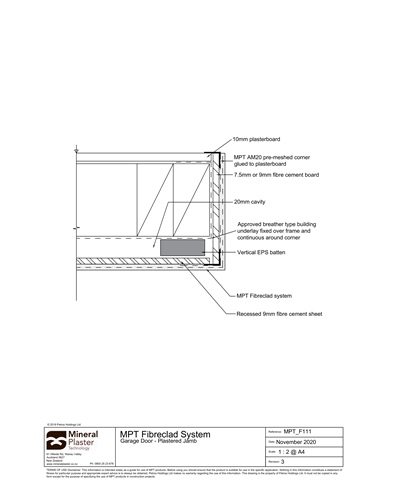

Plastered Jamb
-

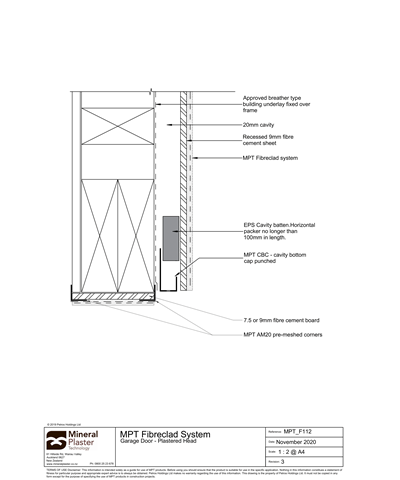

Plastered Head
General
-
Sheet List
-

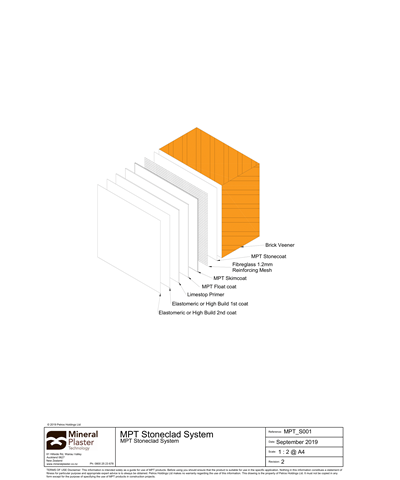

MPT Stoneclad System
Joint
-

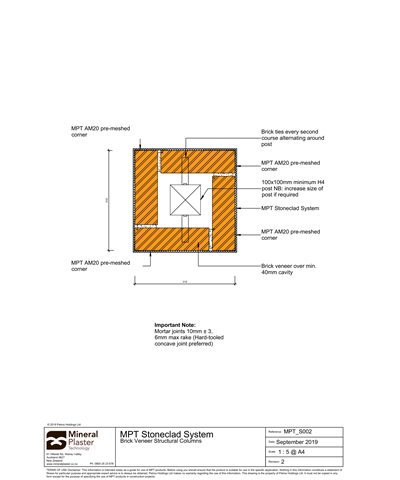

Brick Veneer Structural Columns
-

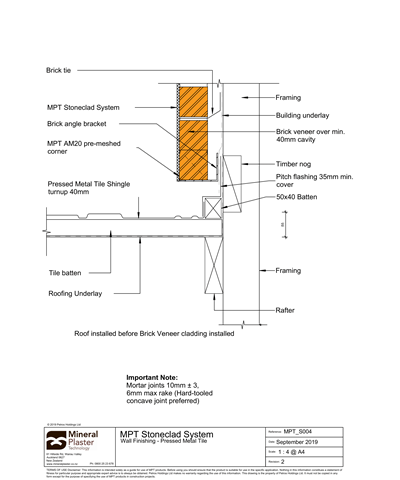

Wall Finishing - Pressed Metal Tile
-

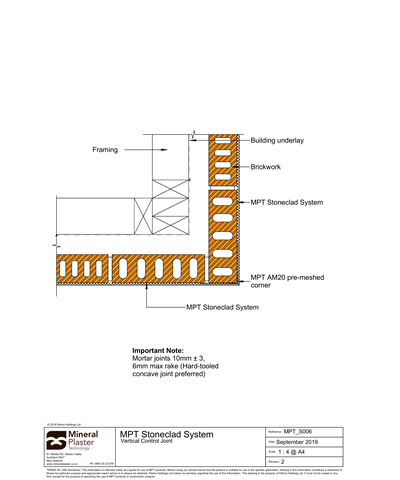

Vertical Control Joint
-

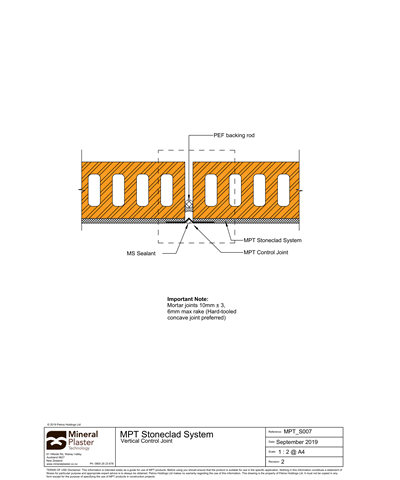

Vertical Control Joint
-
Vertical Control Joint
-

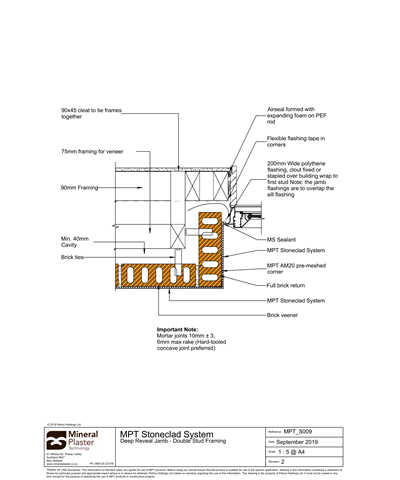

Deep Reveal Jamb - Double Stud Framing
-

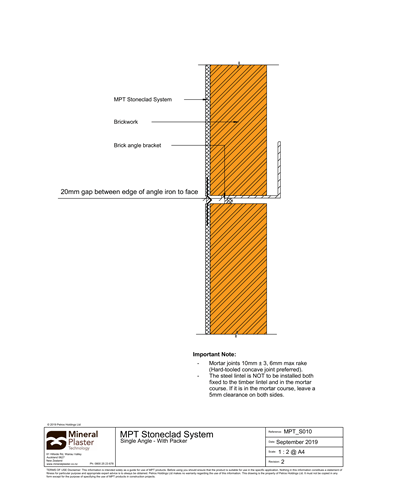

Single Angle - With Packer
-

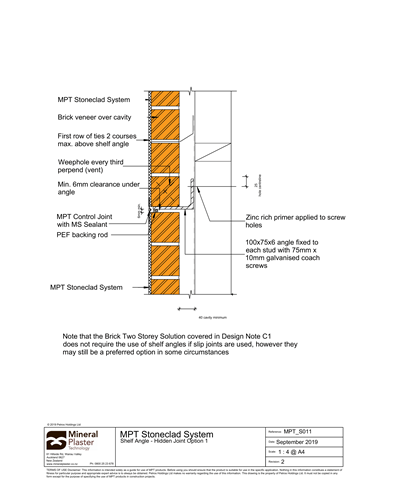

Shelf Angle - Hidden Joint Option 1
-

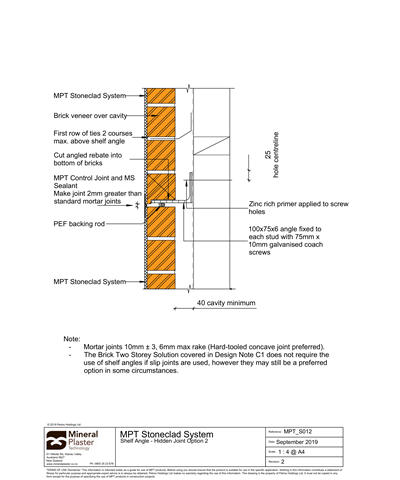

Shelf Angle - Hidden Joint Option 2
Roofs & Soffits
-

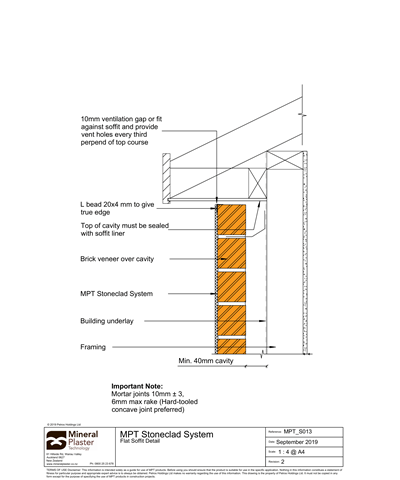

Flat Soffit Detail
-

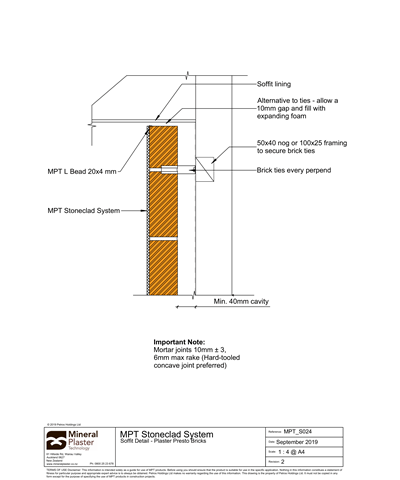

Soffit Detail - Plaster Presto Bricks
-

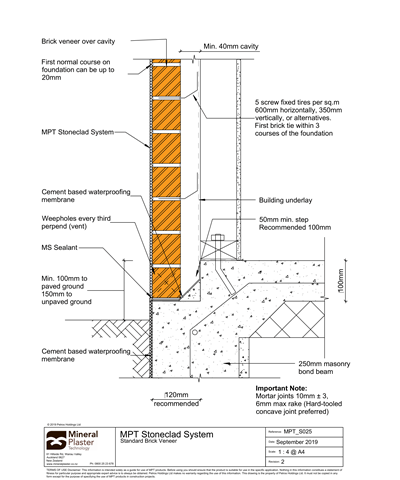

Standard Brick Veneer
-

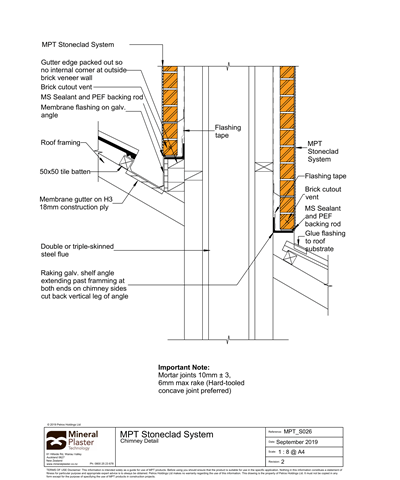

Chimney Detail
Walls
-
Wall Section Typical
-
Pipe Penetration
-

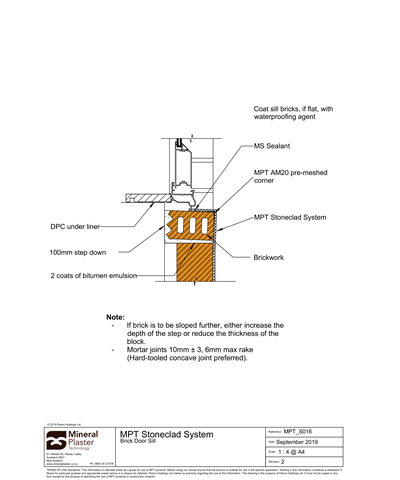

Brick Door Sill
-

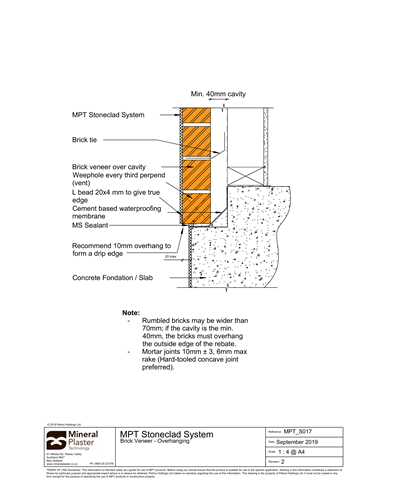

Brick Veneer - Overhanging
-

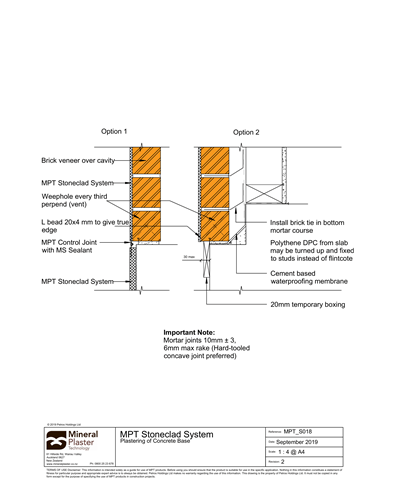

Plastering of Concrete Base
-

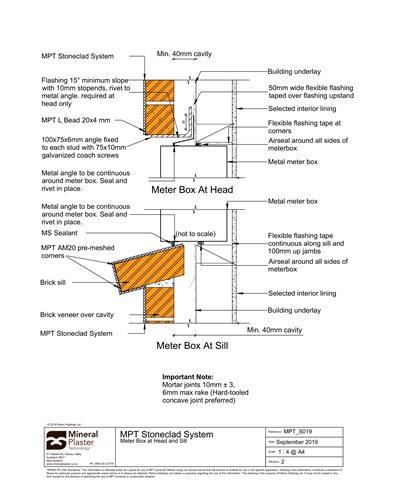

Meter Box At Head And Sill
-

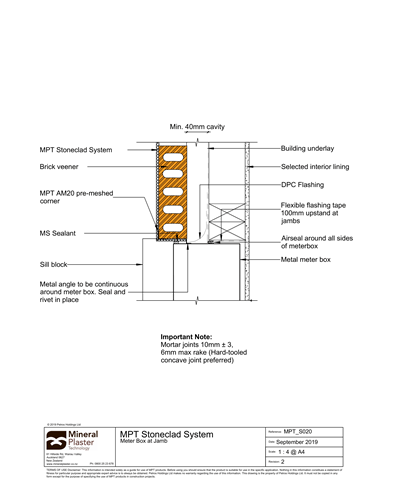

Meter Box At Jamb
-

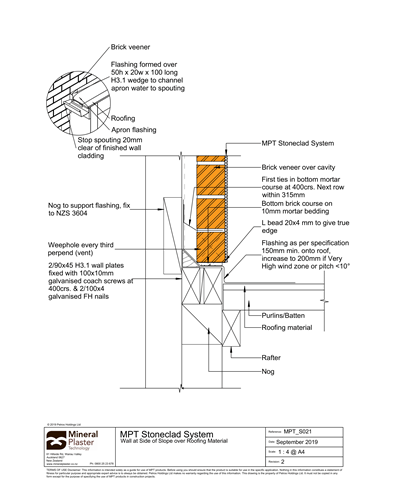

Wall At Side Of Slope Flashing Over Roofing Material
-

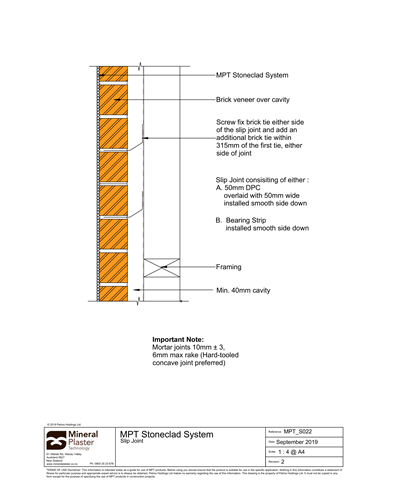

Slip Joint
-

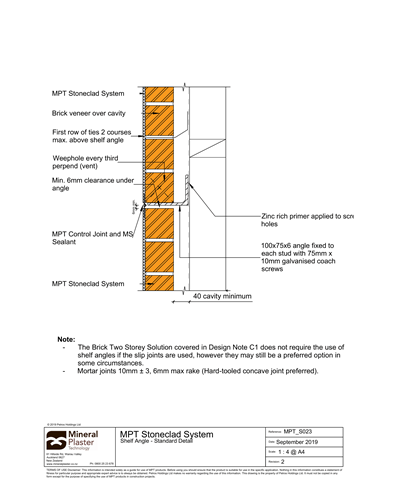

Shelf Angle - Standard Detail
Windows
-

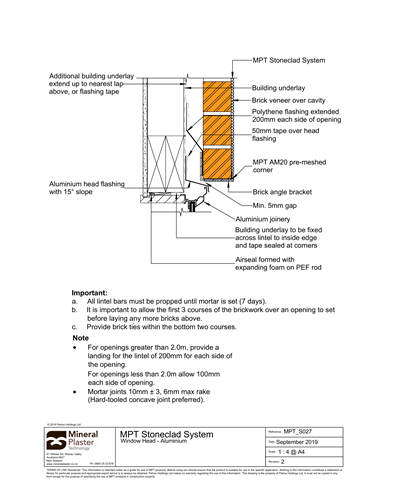

Window Head - Aluminium
-

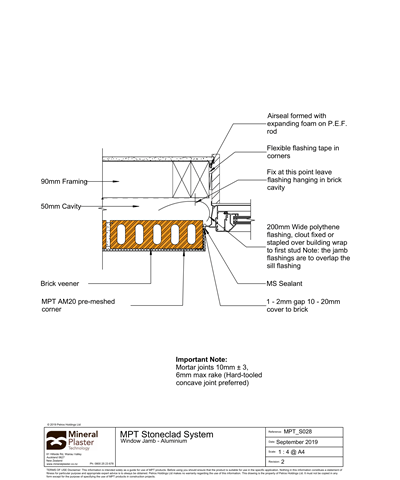

Window Jamb - Aluminium
-

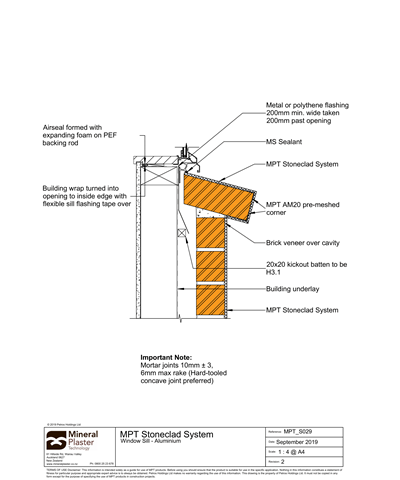

Window Sill Aluminium
Garage Door
-

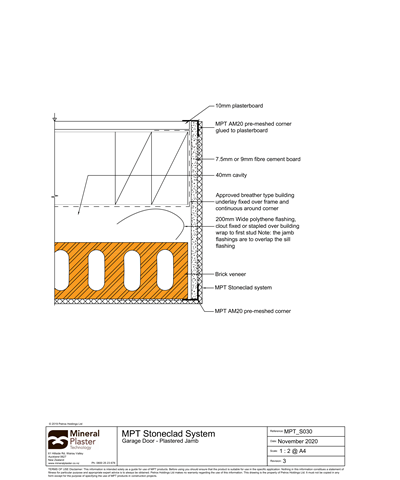

Garage Door - Plastered Jamb
Technical Data Sheets
-
Bondcoat
-

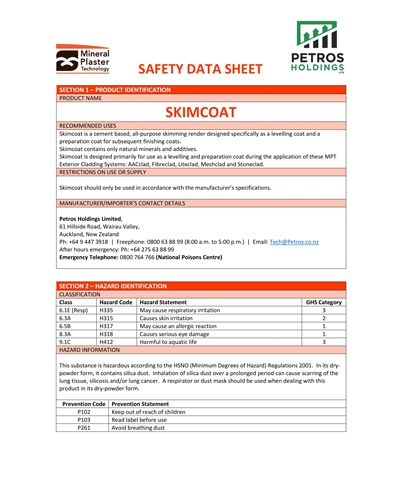

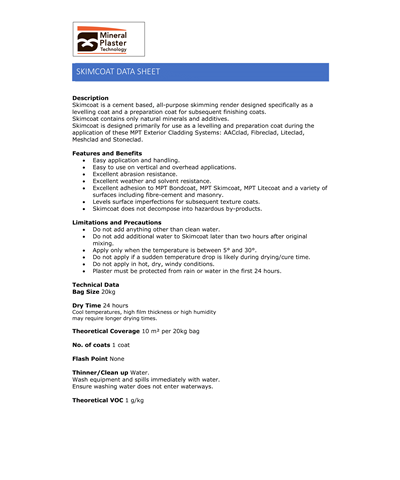

Skimcoat
-
Floatcoat
-

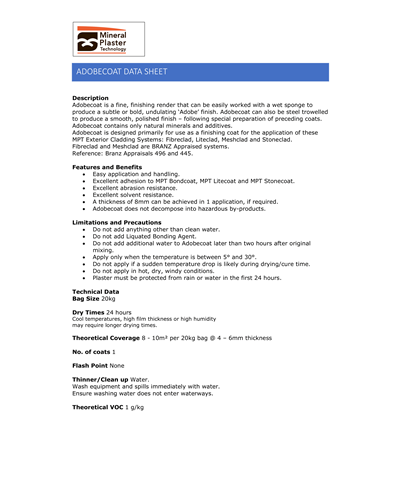

Adobecoat
-

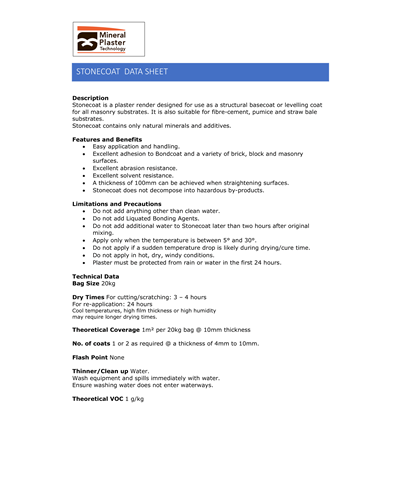

Stonecoat
-

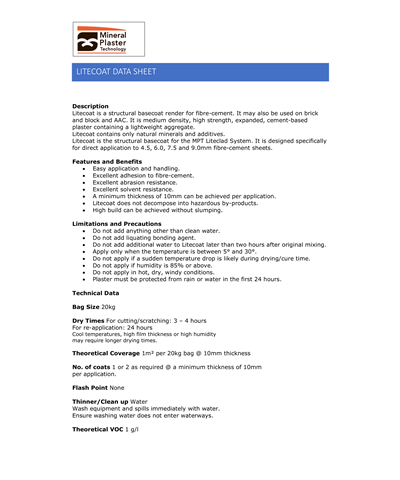

Litecoat
-
Petraflex Tanking Render
-

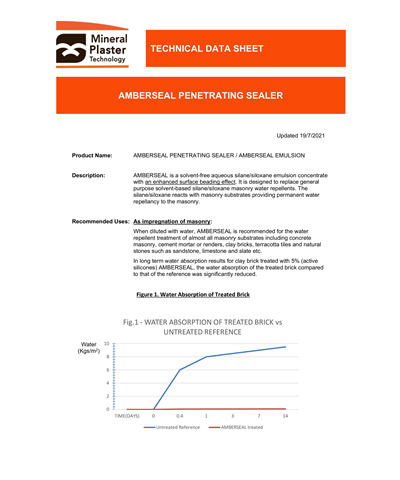

Amberseal Penetrating Sealer
-
Petralastic

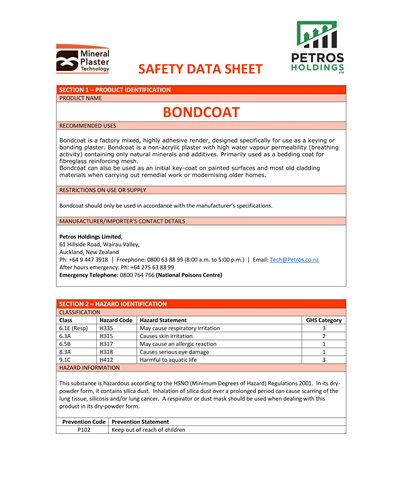

Safety Data Sheets
-

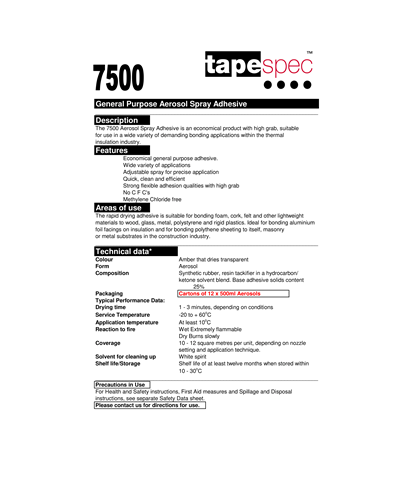

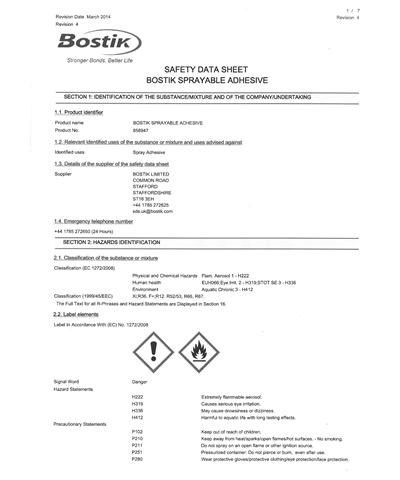

General Purpose Aerosol Spray Adhesive
-
Lime Block Primer
-

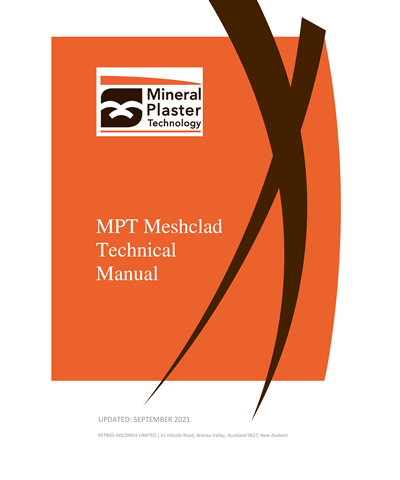

MPT Meshclad Technical Manual
-
Adobecoat
-

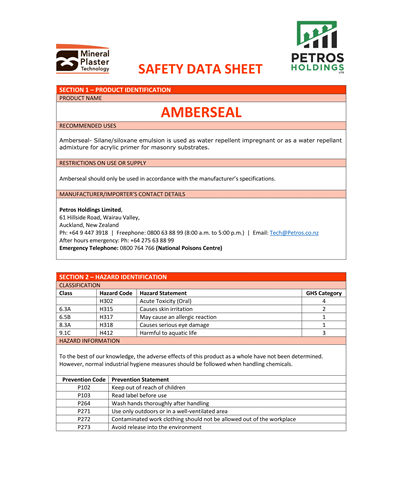

Amberseal
-
Bondcoat
-
Craftbond
-

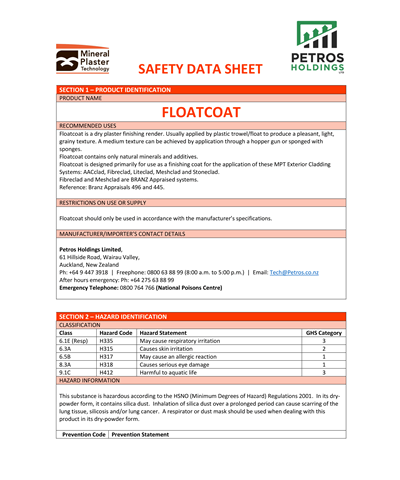

Floatcoat
-

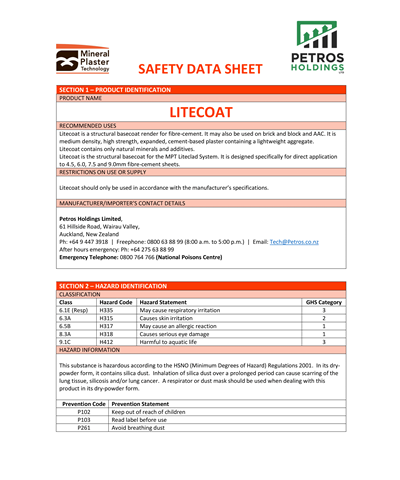

Litecoat
-

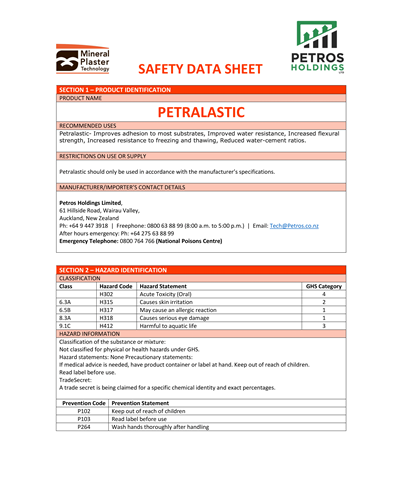

Petralastic
-
Skimcoat
-

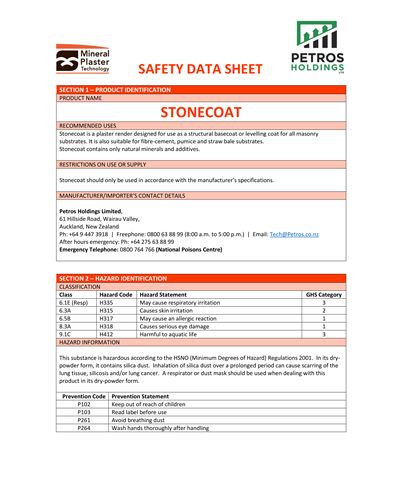

Stonecoat
-
Spray Adhesive
-

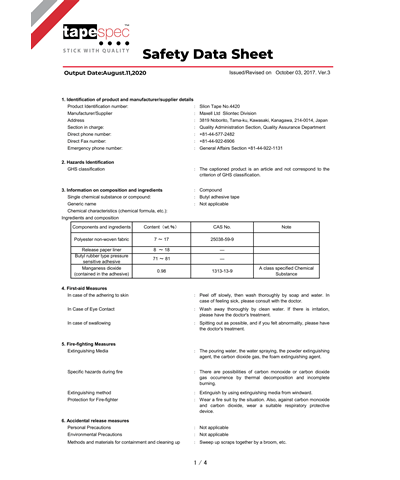

Tape
MPT
Plaster
Systems
